Einheit · CONTROL
V A4VSO 500 EM/20R910948750
- Nummer
- R910948750
- Typschlüssel
- V A4VSO 500 EM/20
- Gruppe
- A4VSO 500
- Ausgabe
- 05/2020

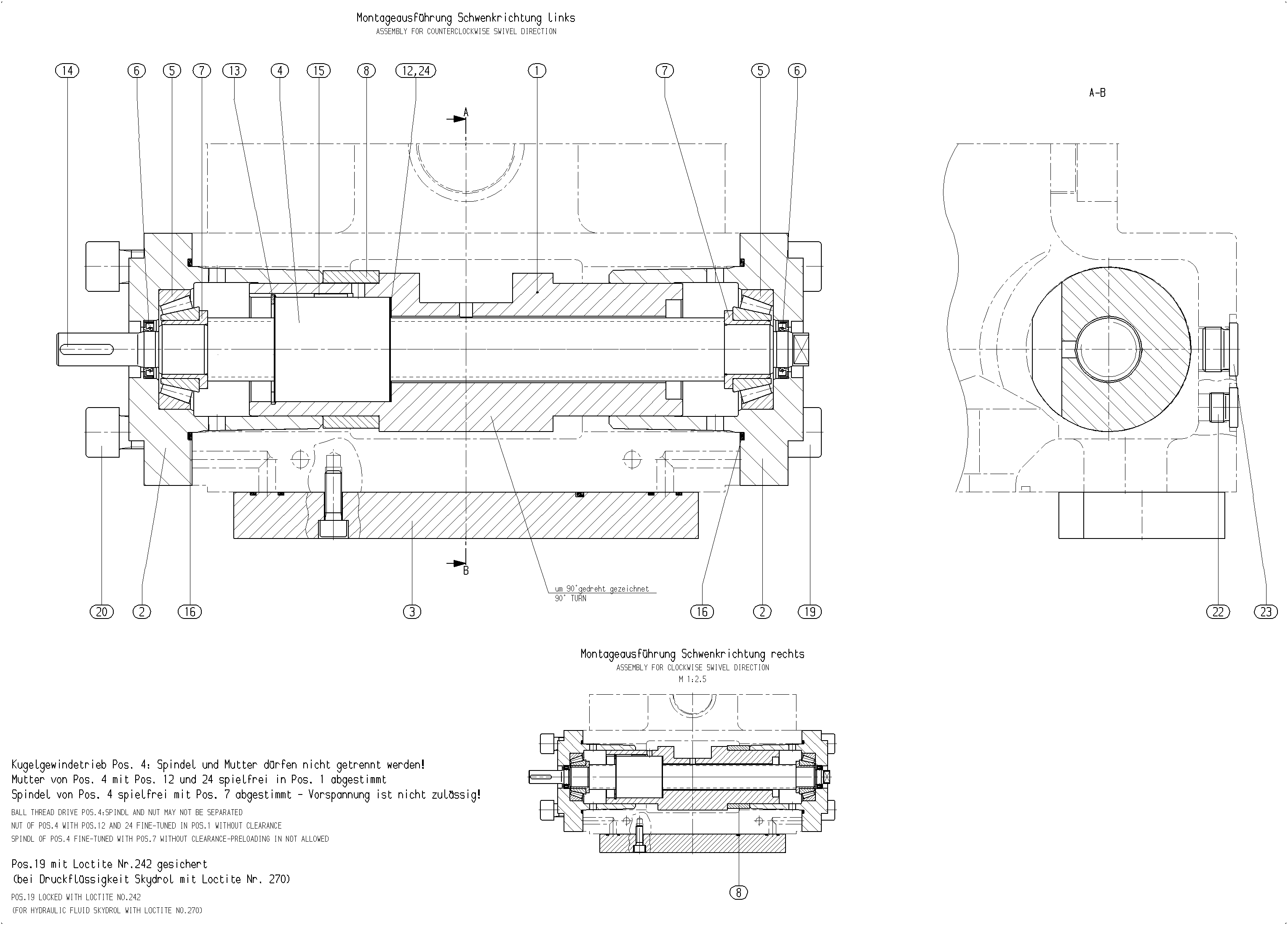

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902559932 | ADJUSTING PISTON | 1 | ||
| R910942539 | PISTON HOUSING | 2 | ||
| R910988549 | GASKET Stückliste der Baugruppe →L | 1 | ||
| R910946042 | BALL SCREW ASSEMBLY | 1 | ||
| R910918201 | TAPERED-ROLLER BEARING | 2 | ||
| R910900853 | SHAFT SEALING RING | 2 | ||
| R910942904 | BEARING SLEEVE | 2 | ||
| R910942608 | SIDE MARKER RING | 1 | ||
| R909083428 | SHIM RING | 3 | ||
| R909830312 | RETAINING RING | 1 | ||
| R910125539 | PARALLEL KEY | 1 | ||
| R910125482 | PARALLEL KEY | 1 | ||
| R910977052 | O-RING | 2 | ||
| R910120782 | SOCKET HEAD CAP SCREW | 4 | ||
| R910705799 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153815 | SCREW PLUG | 1 | ||
| R909153365 | SCREW PLUG | 1 | ||
| R910587052 | SHIM RING | 1 |
