Einheit · BASE UNIT
G A10V T 28 OV /50W1-PNN68B01 GFT5R910949815

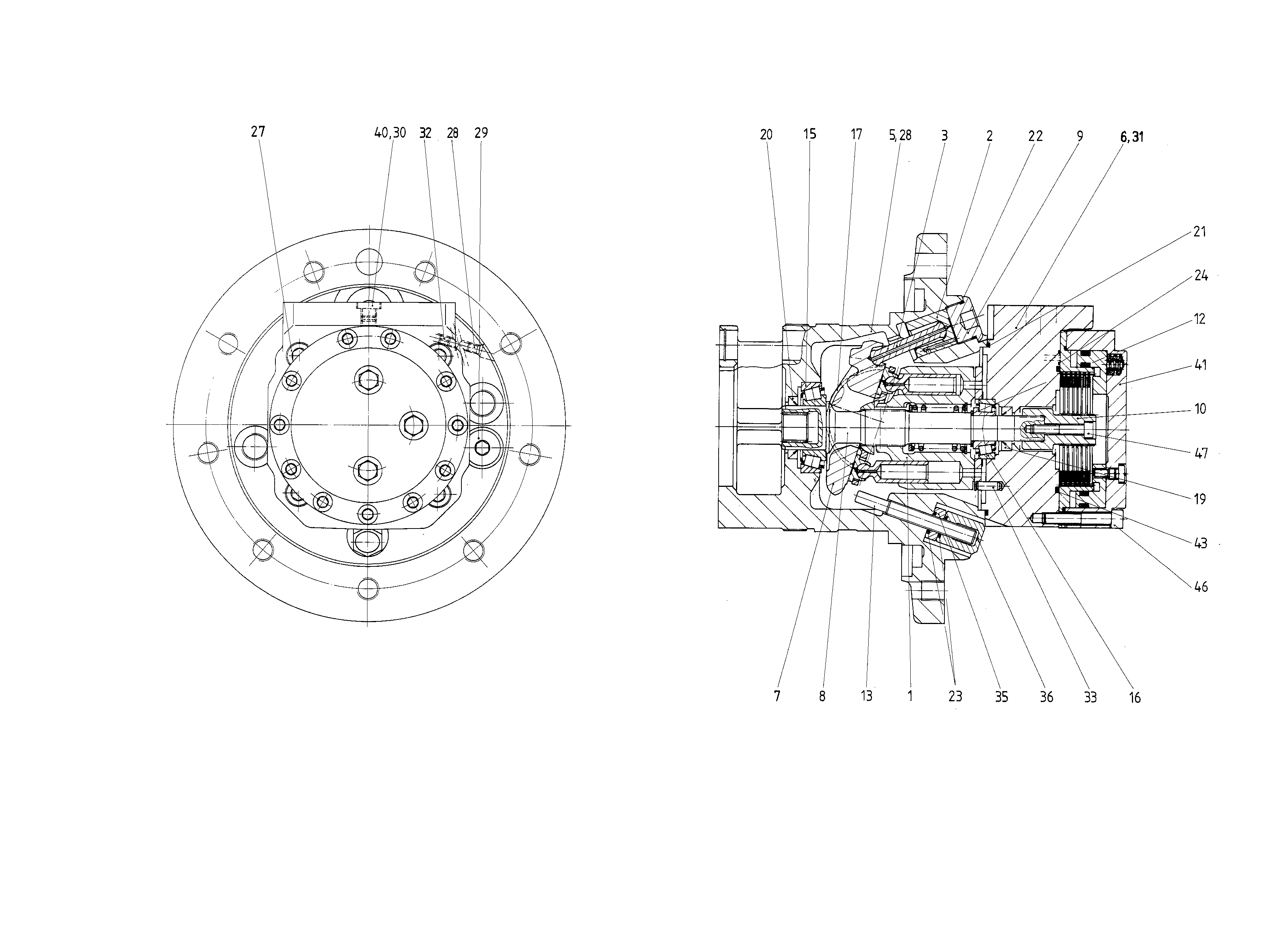

Grundeinheit Bosch Rexroth Baureihe A10VT, Typschlüssel GA10VT28OV/50W1-PNN68B01GFT5, Materialnummer R910949815.
- Nummer
- R910949815
- Typschlüssel
- G A10V T 28 OV /50W1-PNN68B01 GFT5
- Gruppe
- A10VT 28
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910988570 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| R910928600 | ADJUSTING PISTON | 1 | ||
| R902439967 | PISTON ROD | 1 | ||
| 5 | R910949788 | MOTOR HOUSING | 1 | |
| R910949696 | CONNECTION PLATE | 1 | ||
| 7 | R902443524 | SWASH PLATE | 1 | |
| R902417376 | DRIVE SHAFT | 1 | ||
| R902447686 | SCREW PLUG Stückliste der Baugruppe →L | 1 | ||
| 10 | R910949785 | TOOTHED SHAFT | 1 | |
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R910943993 | STOP SCREW | 1 | ||
| R910949767 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R902410506 | BEARING SHELL | 2 | ||
| 19 | R910946735 | SHAFT SEALING RINGD | 1 | |
| R910719846 | SHAFT SEALING RINGD | 1 | ||
| R913052046 | O-RINGD | 1 | ||
| R910514691 | O-RINGD | 2 | ||
| R910102008 | O-RINGD | 2 | ||
| R910121266 | SOCKET HEAD CAP SCREW | 4 | ||
| 28 | R910939292 | DOUBLE BREAK-OFF PLUG | 3 | |
| 29 | R909153815 | SCREW PLUGD | 1 | |
| 30 | R913011600 | SCREW PLUG | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| 32 | R910925530 | NOZZLE | 1 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| 40 | R910910177 | SHUTTLE VALVE | 1 | |
| 41 | R910941701 | BRAKE | 1 | |
| 43 | R910977041 | O-RING | 1 | |
| R910193216 | SOCKET HEAD CAP SCREW | 11 | ||
| R910109347 | SOCKET HEAD CAP SCREW | 1 |
