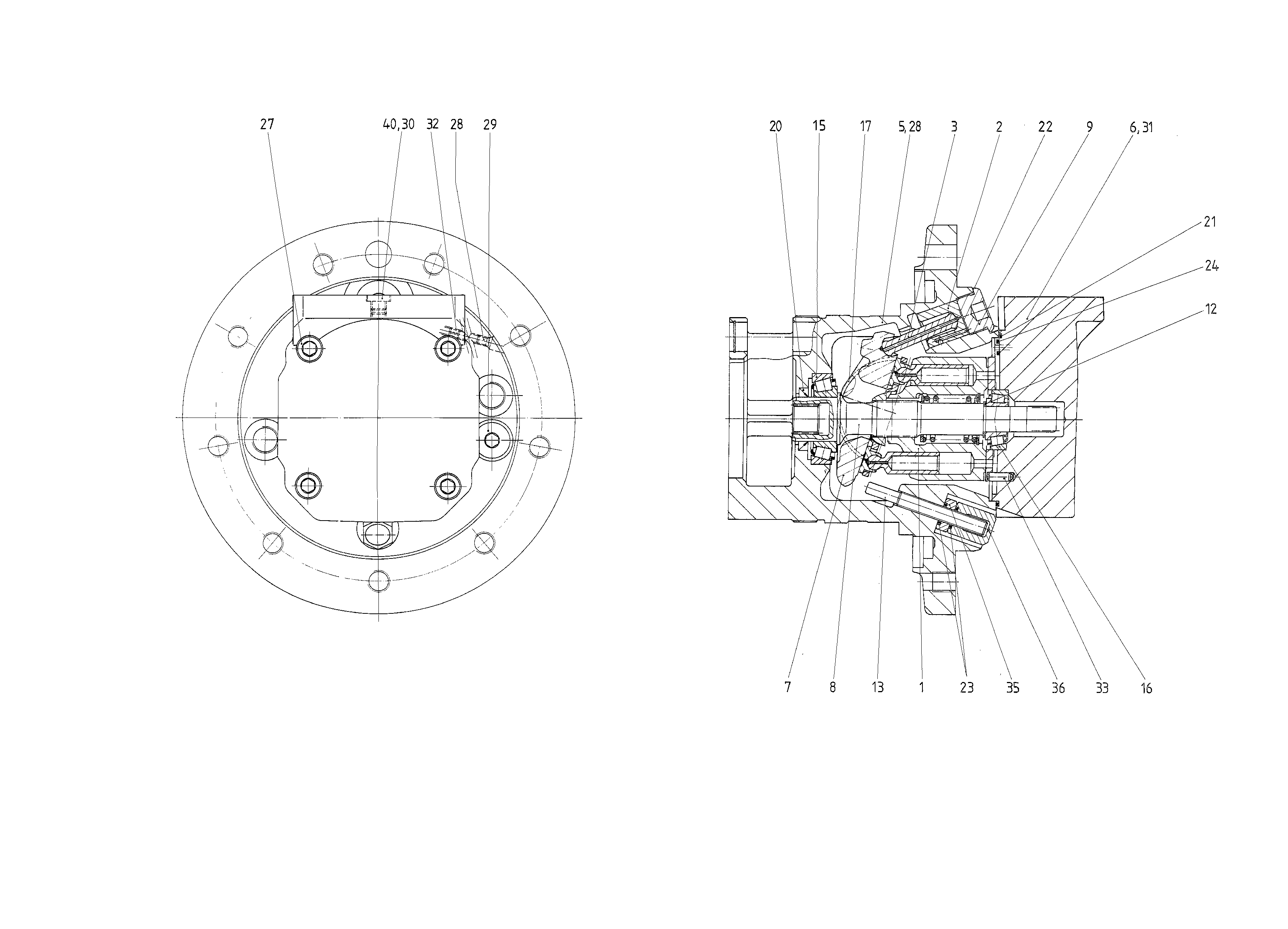

Einheit · BASE UNIT
G A10V T 28 OV /50W1-PNN68N00 GFT5 TAR910961840
Grundeinheit Bosch Rexroth Baureihe A10VT, Typschlüssel GA10VT28OV/50W1-PNN68N00GFT5TA, Materialnummer R910961840.
- Nummer
- R910961840
- Typschlüssel
- G A10V T 28 OV /50W1-PNN68N00 GFT5 TA
- Gruppe
- A10VT 28
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910988570 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| R910928600 | ADJUSTING PISTON | 1 | ||
| R902439967 | PISTON ROD | 1 | ||
| 5 | R910949788 | MOTOR HOUSING | 1 | |
| 6 | R910961765 | CONNECTION PLATE | 1 | |
| 7 | R902443524 | SWASH PLATE | 1 | |
| R902417376 | DRIVE SHAFT | 1 | ||
| R902447686 | SCREW PLUG Stückliste der Baugruppe →L | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R910943993 | STOP SCREW | 1 | ||
| R910949767 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R902410506 | BEARING SHELL | 2 | ||
| R910719846 | SHAFT SEALING RINGD | 1 | ||
| R913052046 | O-RINGD | 1 | ||
| 23 | R910514691 | O-RINGD | 2 | |
| R910102008 | O-RINGD | 1 | ||
| R910121266 | SOCKET HEAD CAP SCREW | 4 | ||
| 28 | R910939292 | DOUBLE BREAK-OFF PLUG | 3 | |
| R909153815 | SCREW PLUGD | 1 | ||
| 30 | R913011600 | SCREW PLUG | 1 | |
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| 32 | R910925530 | NOZZLE | 1 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| 35 | R910998240 | NUT | 1 | |
| 36 | R910961839 | CAP NUT | 1 | |
| 40 | R910910177 | SHUTTLE VALVE | 1 |
