Einheit · ROTARY GROUP
TW A4VSO 125 M/30R-VPBK00R910996032
Triebwerk Bosch Rexroth Baureihe A4VSO, Typschlüssel TWA4VSO125M/30R-VPBK00, Materialnummer R910996032. Nenngröße: NG 125. Axialkolbeneinheit: Schrägscheibenbauart, verstellbar, Nenndruck 5100 psi (350 bar), Höchstdruck 5800 psi (400 bar) metrisch (A4VS). Betriebsart: Pumpe, offener Kreislauf (O). Drehrichtungen: Blick auf Triebwelle rechts (R). Dichtungswerkstoff: FKM (Fluorkautschuk) / HFD-Betrieb (V). Triebwelle: Zylindrische Welle mit Passfeder DIN 6885 (P).
- Nummer
- R910996032
- Typschlüssel
- TW A4VSO 125 M/30R-VPBK00
- Gruppe
- A4VSO 125
- Ausgabe
- 07/2020

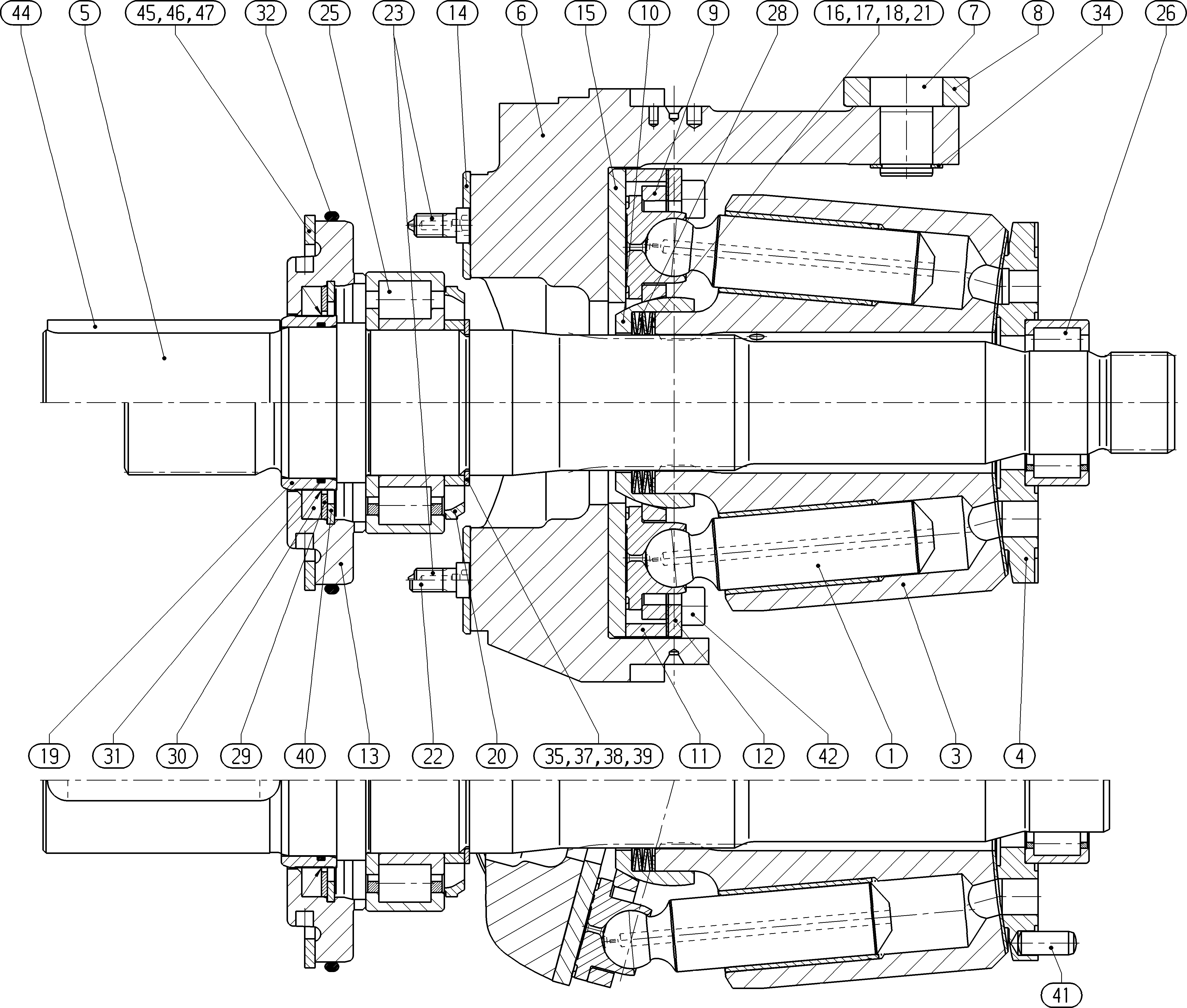

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902400860 | PISTON PAD | 9 | |
| R902463686 | CYLINDER | 1 | ||
| R910936320 | DISTRIBUTOR PLATE | 1 | ||
| R910996952 | DRIVE SHAFT | 1 | ||
| R910796433 | SWASH PLATE | 1 | ||
| R910797332 | DRIVER PIVOT | 1 | ||
| R910923656 | SLIDER | 1 | ||
| R902534515 | RETAINING PLATE | 1 | ||
| R910803064 | RETAINING BALL | 1 | ||
| 11 | R910797367 | SPACER SEGMENT | 2 | |
| R902570169 | SEGMENT | 2 | ||
| R910993486 | SEALING FLANGE | 1 | ||
| R910946522 | BEARING SHELL | 2 | ||
| R910903603 | SLIDING DISC | 1 | ||
| 16 | R910846473 | SHIM RING | 1 | |
| 17 | R910846465 | SHIM RING | 1 | |
| 18 | R909078321 | SHIM RING | 1 | |
| R910991526 | SEAL BUSHING | 1 | ||
| R910993496 | FEED WHEEL | 1 | ||
| 21 | R909078319 | SHIM RING | 1 | |
| R910949038 | SETTING SCREW | 1 | ||
| R910932882 | SETTING SCREW | 1 | ||
| 25 | R910960737 | CYL. ROLLER BEARING | 1 | |
| R910840904 | CYL. ROLLER BEARING | 1 | ||
| R909074128 | CUP-SPRING STACK | 1 | ||
| R902400750 | SHIM RING | 1 | ||
| R910963544 | SHAFT SEALING RINGD | 1 | ||
| R902400765 | O-RING | 1 | ||
| R902400818 | O-RINGD | 1 | ||
| R910126691 | RETAINING RING | 1 | ||
| 35 | R910114677 | RETAINING RING | 1 | |
| 37 | R910991731 | RETAINING RING | 1 | |
| 38 | R910991733 | RETAINING RING | 1 | |
| 39 | R910991734 | RETAINING RING | 1 | |
| R910116025 | RETAINING RING | 1 | ||
| 41 | R913000822 | STRAIGHT PIN | 1 | |
| R902650865 | SOCKET HEAD CAP SCREW | 4 | ||
| R910244848 | PARALLEL KEY | 1 | ||
| 45 | R910991665 | RETAINING RING | 1 | |
| 46 | R910991666 | RETAINING RING | 1 | |
| 47 | R910991667 | RETAINING RING | 1 |
Parameter aus dem Typschlüssel
| Position | Bedeutung | Code |
|---|---|---|
| Axialkolbeneinheit | Schrägscheibenbauart, verstellbar, Nenndruck 5100 psi (350 bar), Höchstdruck 5800 psi (400 bar) metrisch | A4VS |
| Betriebsart | Pumpe, offener Kreislauf | O |
| Nenngröße (NG) | 125 | 125 |
| Baureihe | Baureihe 3, Index 0 | 30 |
| Drehrichtungen | Blick auf Triebwelle rechts | R |
| Dichtungswerkstoff | FKM (Fluorkautschuk) / HFD-Betrieb | V |
| Triebwelle | Zylindrische Welle mit Passfeder DIN 6885 | P |
| Durchtrieb | 00 | 00 |
