Einheit · AXIAL-PISTON MOTOR
AA10FSM14/31W-VKH16XR910998599
Axialkolbenmotor Bosch Rexroth Baureihe A10FSM, Typschlüssel AA10FSM14/31W-VKH16X, Materialnummer R910998599.
- Nummer
- R910998599
- Typschlüssel
- AA10FSM14/31W-VKH16X
- Gruppe
- A10FSM 14
- Ausgabe
- 12/2020

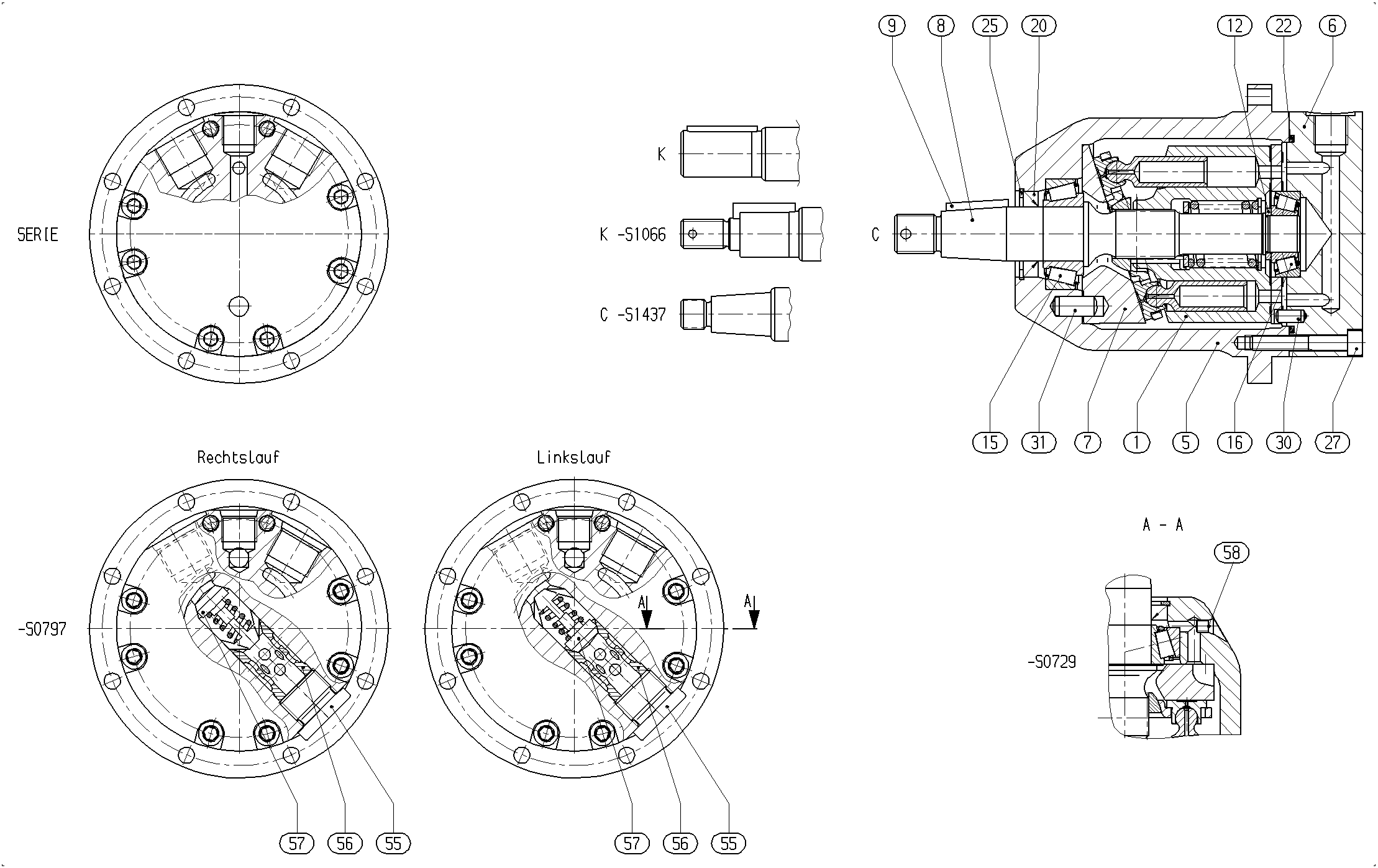

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910993825 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910967110 | BUILT-IN SOCKET | 1 | ||
| R910967112 | CONNECTION PLATE | 1 | ||
| R910995356 | CAM PLATE | 1 | ||
| R910973913 | DRIVE SHAFT | 1 | ||
| R910930528 | PARALLEL KEY | 1 | ||
| R902400729 | ADJUSTMENT SHIM | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R909086994 | TAPERED-ROLLER BEARING | 1 | ||
| R910900853 | SHAFT SEALING RING | 1 | ||
| R910274135 | O-RING | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110159 | SOCKET HEAD CAP SCREW | 8 | ||
| R910911771 | STRAIGHT PIN | 1 | ||
| R910185906 | STRAIGHT PIN | 1 |
