Einheit · AXIAL-PISTON MOTOR
A A10FSM 18 /31L-VKH16X -SO797R910999914

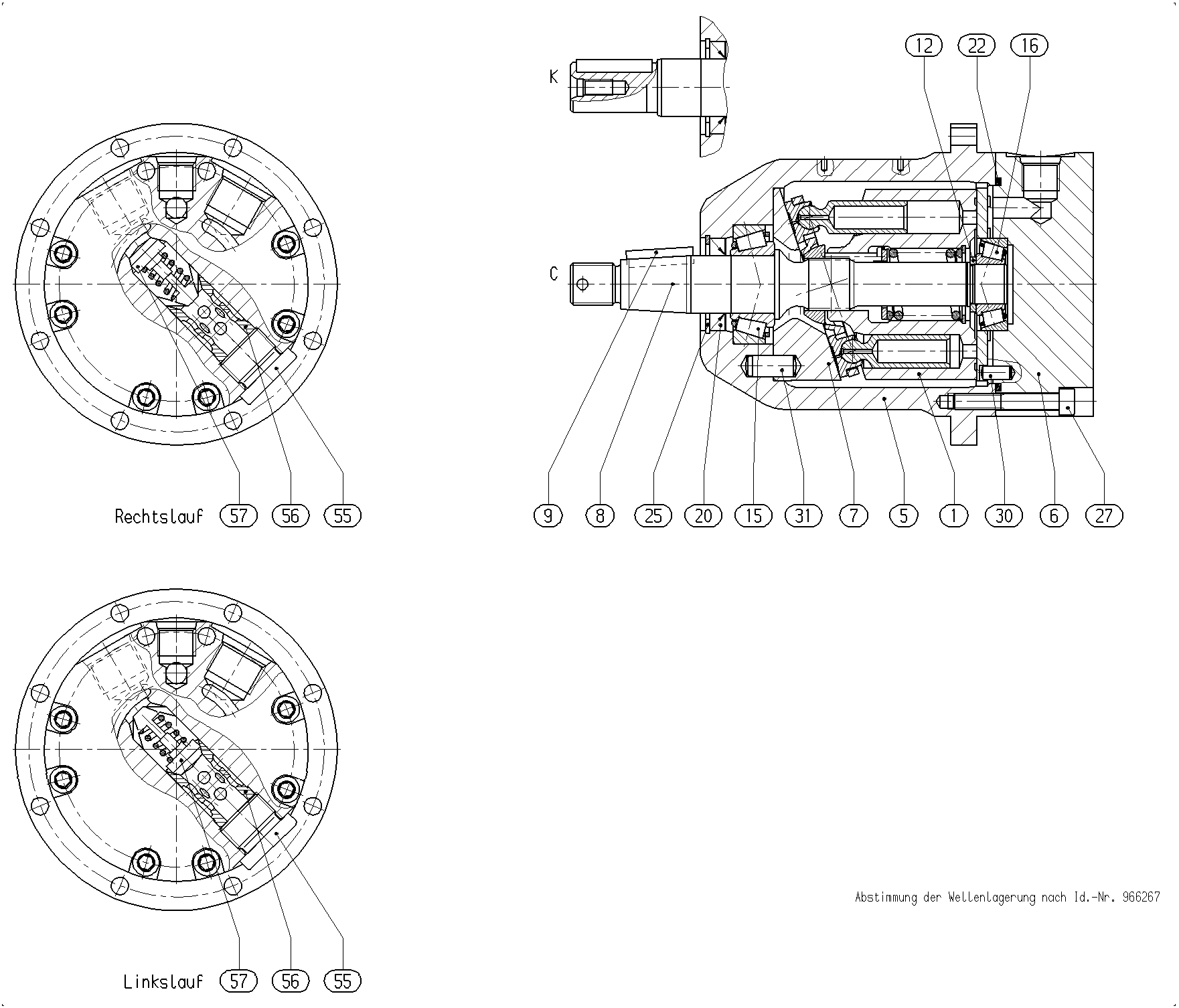

Axialkolbenmotor Bosch Rexroth Baureihe A10FSM, Typschlüssel AA10FSM18/31L-VKH16X-SO797, Materialnummer R910999914.
- Nummer
- R910999914
- Typschlüssel
- A A10FSM 18 /31L-VKH16X -SO797
- Gruppe
- A10FSM 18
- Ausgabe
- 12/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910993825 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910967110 | BUILT-IN SOCKET | 1 | ||
| R910995951 | CONNECTION PLATE | 1 | ||
| R910967115 | CAM PLATE | 1 | ||
| R910973913 | DRIVE SHAFT | 1 | ||
| R910930528 | PARALLEL KEY | 1 | ||
| R902400729 | ADJUSTMENT SHIM | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R909086994 | TAPERED-ROLLER BEARING | 1 | ||
| R910900853 | SHAFT SEALING RING | 1 | ||
| R910274135 | O-RING | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110159 | SOCKET HEAD CAP SCREW | 8 | ||
| R910911771 | STRAIGHT PIN | 1 | ||
| R910185906 | STRAIGHT PIN | 1 | ||
| R909157040 | SCREW PLUG | 1 | ||
| R910996046 | VALVE SLEEVE | 1 | ||
| R910989620 | VALVE INSERT | 1 |
