Einheit · AXIAL-PISTON PUMP
A4VTG90HW/32R-NLD10F001SR992000030
Axialkolbenpumpe Bosch Rexroth Baureihe A4VTG, Typschlüssel A4VTG90HW/32R-NLD10F001S, Materialnummer R992000030.
- Nummer
- R992000030
- Typschlüssel
- A4VTG90HW/32R-NLD10F001S
- Gruppe
- A4VTG 90
- Ausgabe
- 02/2020

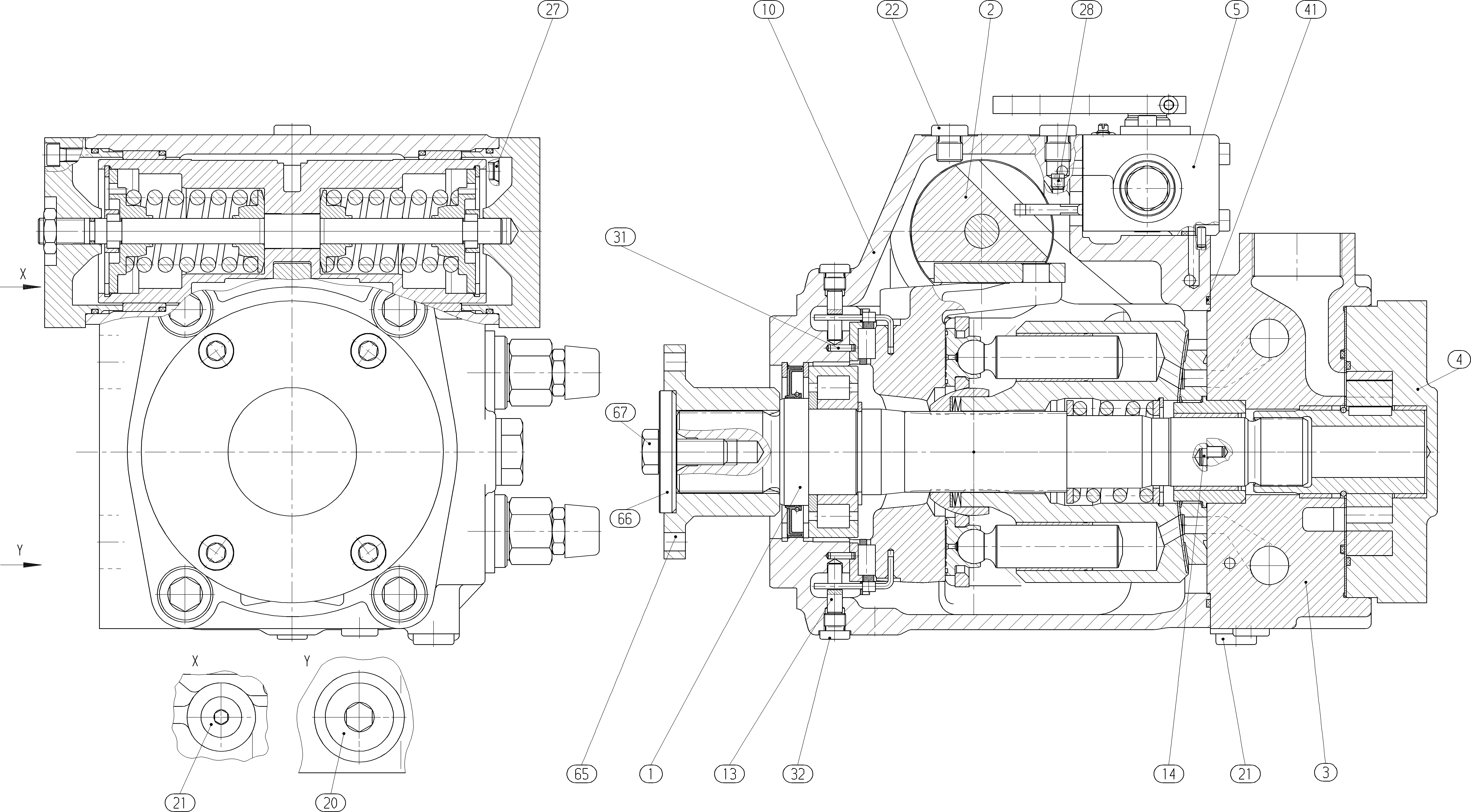

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902106005 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902019518 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R909613515 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R909606767 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| 5 | R902031253 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | |
| R902020375 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| 31 | R913016373 | SLOTTED SPRING PIN | 2 | |
| R909153364 | SCREW PLUGD | 2 | ||
| R909153330 | O-RINGD | 1 | ||
| R909415573 | COUPLING FLANGE | 1 | ||
| R909449984 | CENTERING DISK | 1 | ||
| R909831458 | HEXAGON SCREW | 1 | ||
| 98 | R902095981 | SEAL KIT | 1 |
