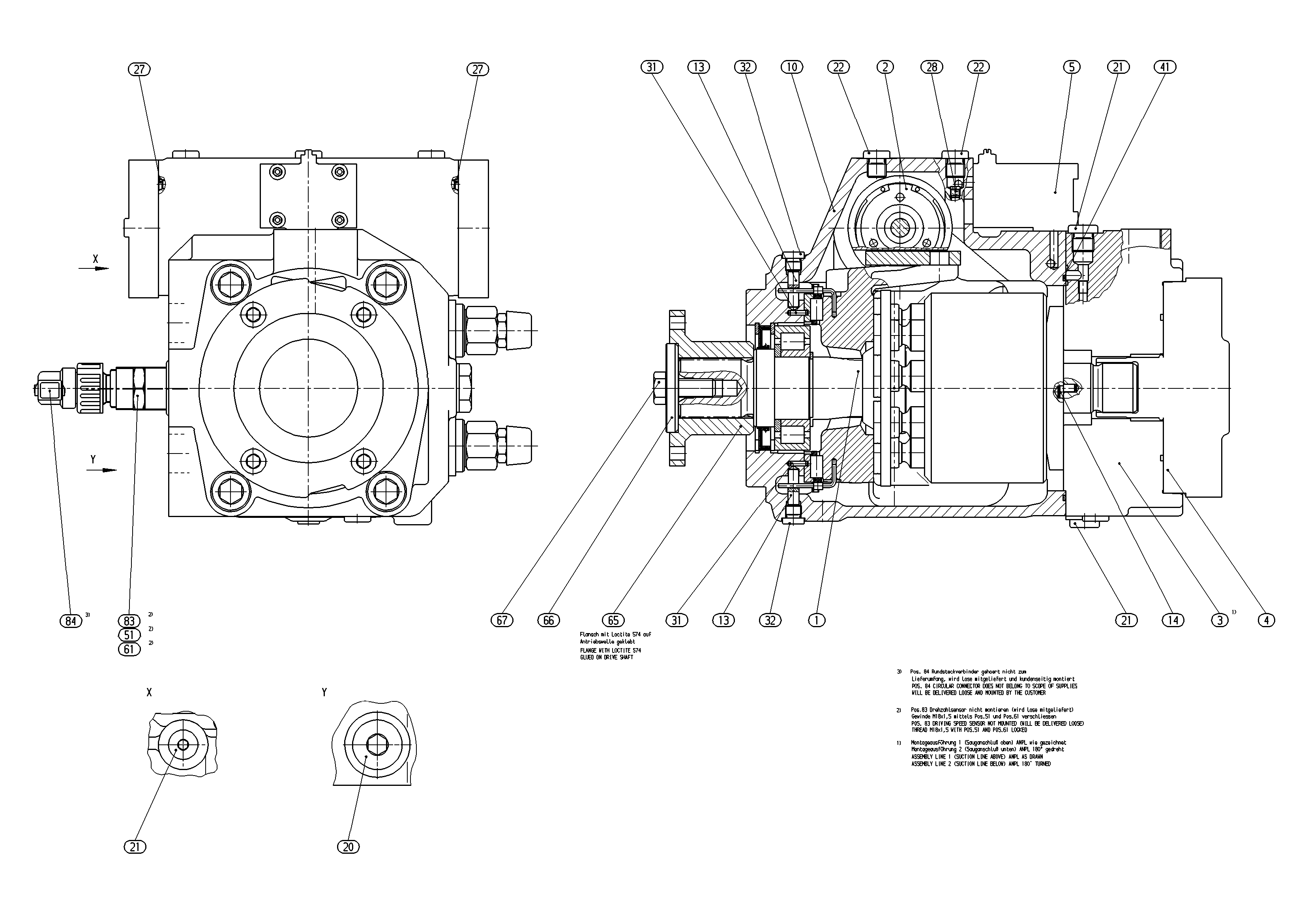

Einheit · AXIAL-PISTON PUMP
A4VTG90EP2/32R-NLD10F011SGT-SR992001326
Axialkolbenpumpe Bosch Rexroth Baureihe A4VTG, Typschlüssel A4VTG90EP2/32R-NLD10F011SGT-S, Materialnummer R992001326.
- Nummer
- R992001326
- Typschlüssel
- A4VTG90EP2/32R-NLD10F011SGT-S
- Gruppe
- A4VTG 90
- Ausgabe
- 11/2019
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902106007 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902019518 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R909613515 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R902018608 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R902064863 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R902020379 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909153330 | O-RINGD | 1 | ||
| R902602010 | SEAL SCREW | 1 | ||
| R909415573 | COUPLING FLANGE | 1 | ||
| R909449984 | CENTERING DISK | 1 | ||
| R909831458 | HEXAGON SCREW | 1 | ||
| R902089530 | ROTATIONAL SPEED SENSOR Stückliste der Baugruppe →L | 1 | ||
| 98 | R902166060 | SEAL KIT | 1 |
