Baugruppe

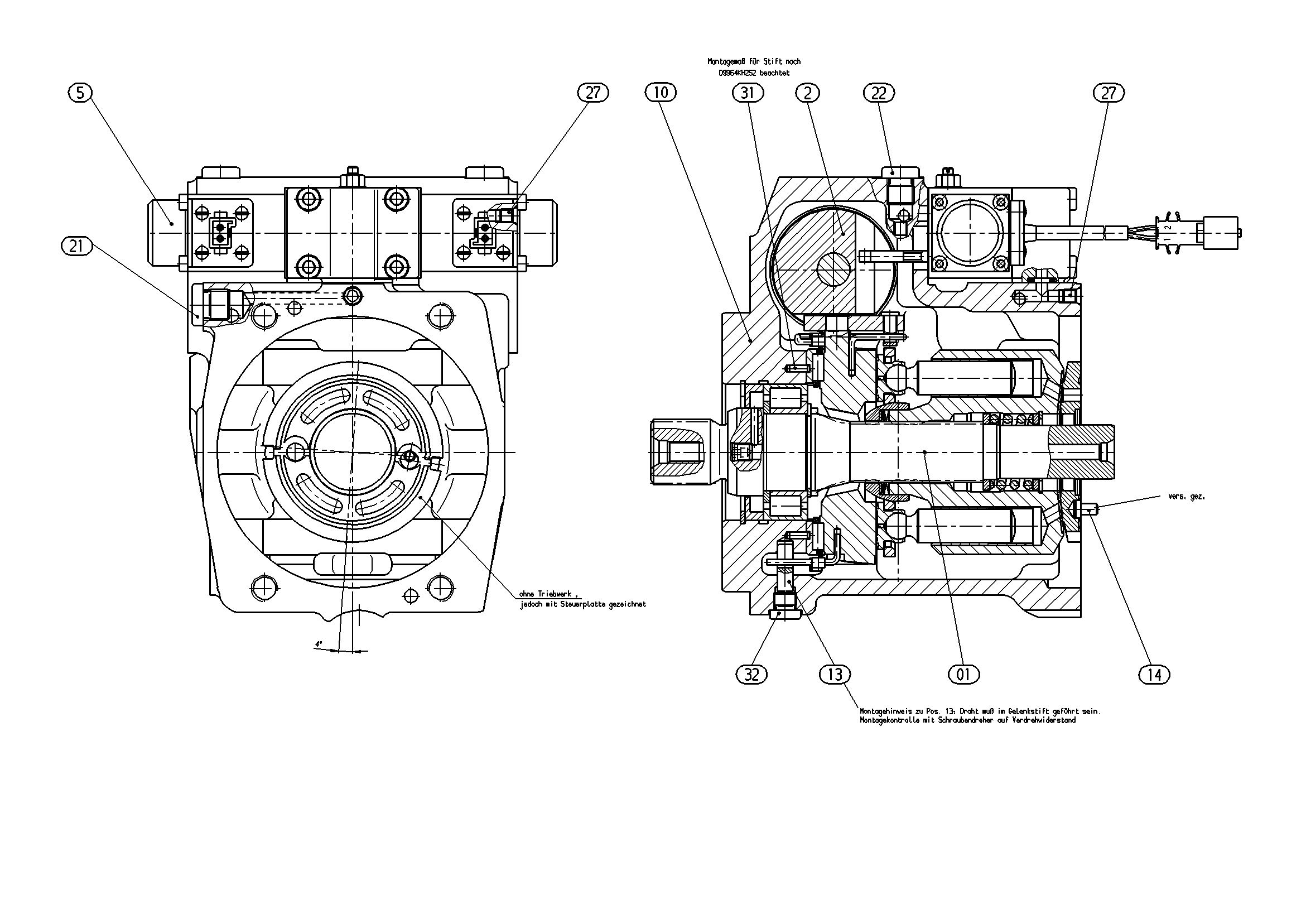

AXIAL-PISTON PUMPR902047653
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902047610 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| R902047789 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R902066757 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R902047714 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| 21 | R909151979 | SCREW PLUGD | 1 | |
| R909151692 | SCREW PLUG | 3 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| 31 | R913016373 | SLOTTED SPRING PIN | 2 | |
| 32 | R909153364 | SCREW PLUG | 1 |
