Baugruppe

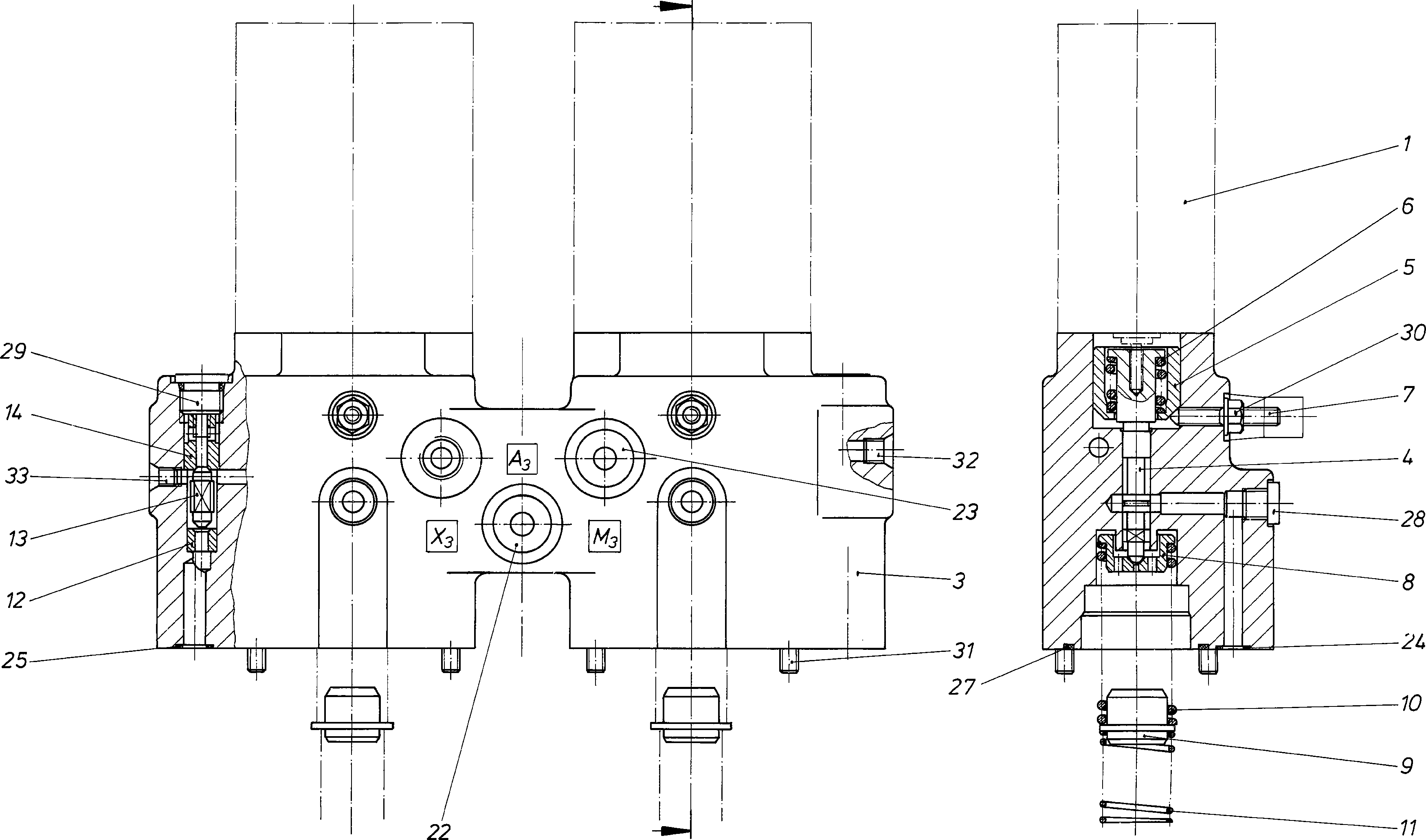

CONTROL MODULER902084293
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902084294 | CONTROL UNIT Stückliste der Baugruppe →L | 1 | ||
| R902068961 | CONTROL HOUSING | 1 | ||
| R909449343 | CONTROL PISTON | 2 | ||
| 5 | R909449344 | SPRING BUSH | 2 | |
| 6 | R909651102 | COMPRESSION SPRING | 2 | |
| 7 | R909425219 | SETSCREW | 2 | |
| 8 | R909921873 | SPRING DISK | 2 | |
| 9 | R909921874 | SPRING DISK | 2 | |
| R909921826 | COMPRESSION SPRING | 2 | ||
| 11 | R909921827 | COMPRESSION SPRING | 2 | |
| R909425801 | BUSHING | 2 | ||
| R909436407 | VALVE CONE | 2 | ||
| R909431990 | VALVE BUSHING | 2 | ||
| 22 | R909151979 | SCREW PLUGD | 1 | |
| R909151979 | SCREW PLUGD | 2 | ||
| 24 | R909085709 | O-RINGD | 2 | |
| R909085709 | O-RINGD | 2 | ||
| R909086334 | O-RINGD | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909086080 | SOCKET HEAD CAP SCREW | 6 | ||
| 32 | R909831319 | DOUBLE BREAK-OFF PLUG | 3 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
