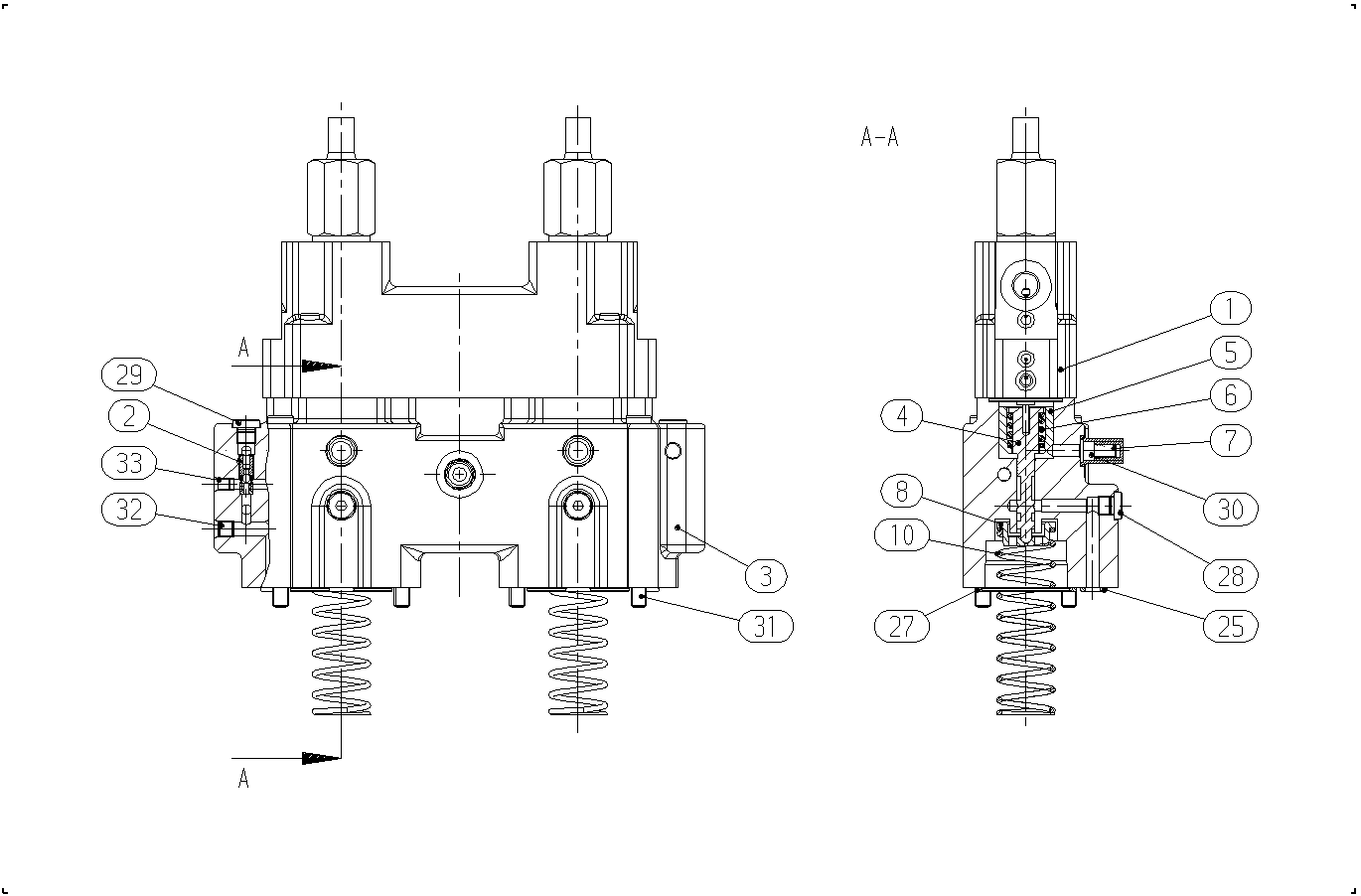

Baugruppe
CONTROL MODULER902090008
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902090015 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| 2 | R902070561 | SHUTTLE VALVE Stückliste der Baugruppe →L | 2 | |
| R902090036 | CONTROL HOUSING | 1 | ||
| R909449944 | CONTROL PISTON | 2 | ||
| 5 | R909449344 | SPRING BUSH | 2 | |
| R909651102 | COMPRESSION SPRING | 2 | ||
| R909425219 | SETSCREW | 2 | ||
| R902094546 | SPRING DISK | 2 | ||
| 10 | R902090017 | COMPRESSION SPRING | 2 | |
| R902600644 | O-RINGD | 4 | ||
| R909152687 | O-RINGD | 2 | ||
| R909156649 | SCREW PLUGD | 2 | ||
| 29 | R909156649 | SCREW PLUGD | 2 | |
| R909152425 | SEALING NUTD | 2 | ||
| R909083052 | SOCKET HEAD CAP SCREW | 6 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
