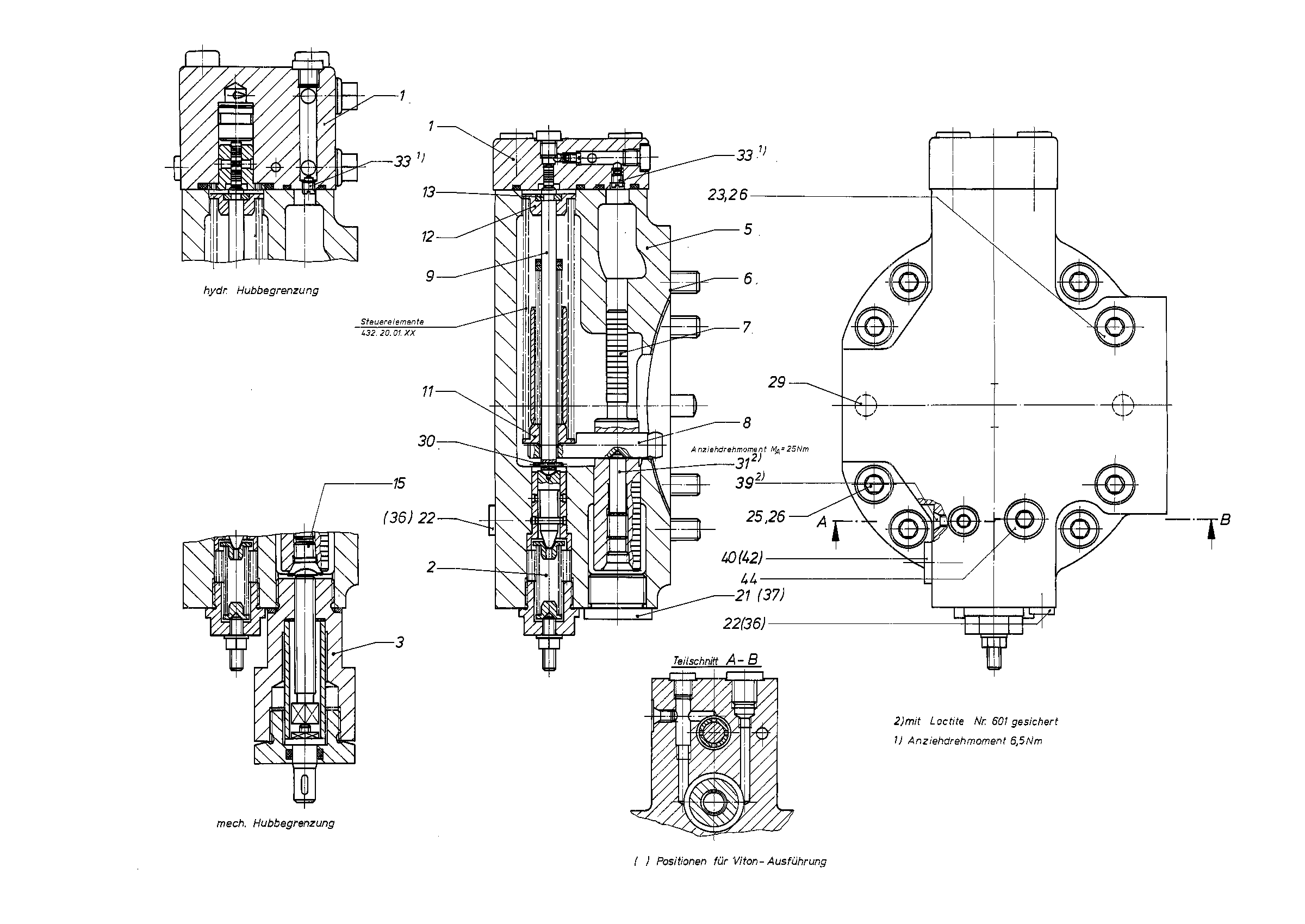

Baugruppe
CONTROLR909400287
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909407507 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909081755 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909406345 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902011877 | SEALD | 1 | ||
| R909409964 | POSITIONING PISTON | 1 | ||
| R909073756 | POSITIONING STUD | 1 | ||
| R909073760 | GUIDE ROD | 1 | ||
| R909073761 | SPRING DISK | 1 | ||
| R909073757 | SPRING DISK | 1 | ||
| R909073652 | RING | 1 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909083074 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083062 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083251 | SPRING LOCK WASHER | 8 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R913017226 | SLOTTED SPRING PIN | 1 | ||
| R909409590 | SETSCREW | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 |
