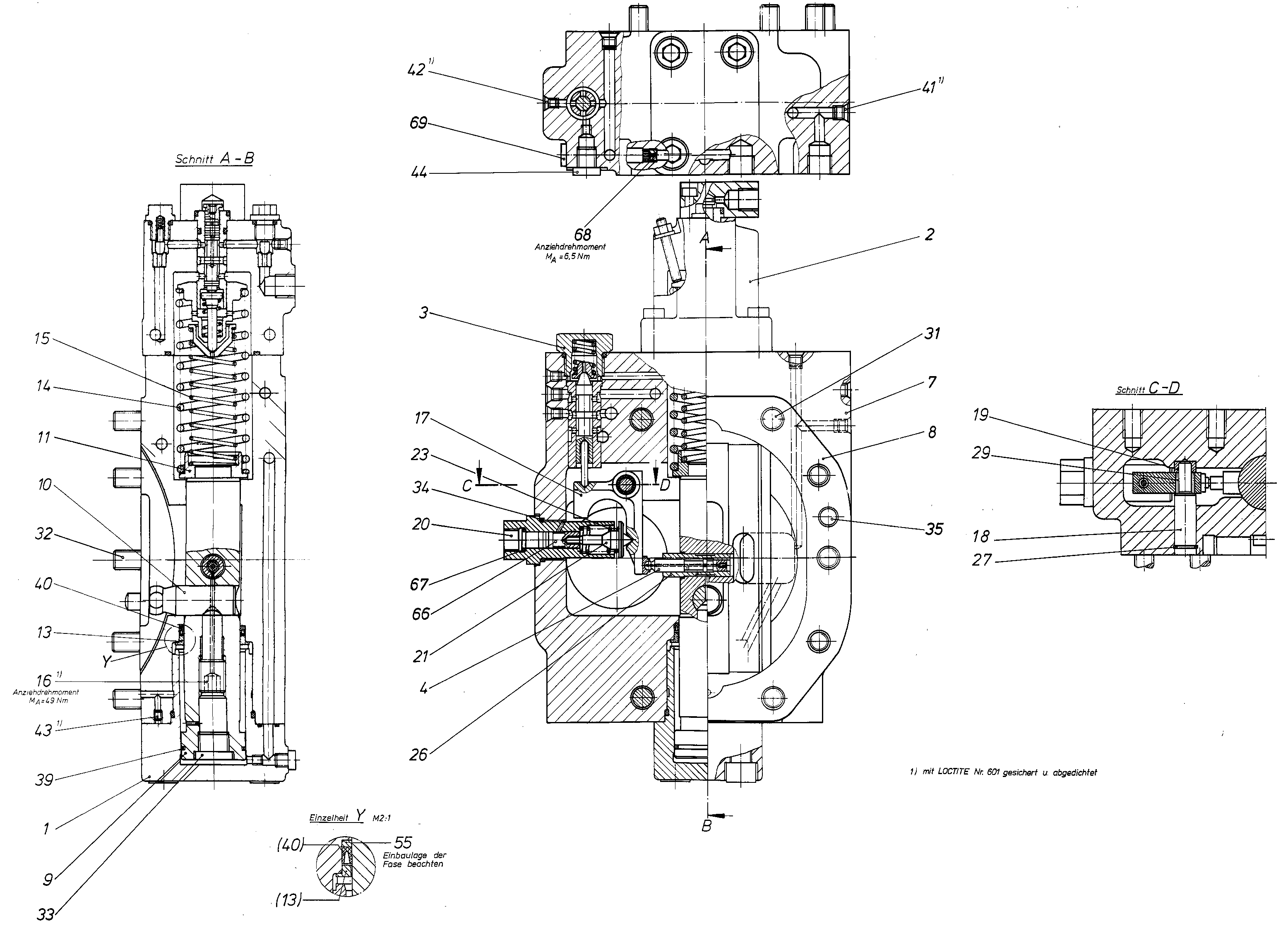

Baugruppe
CONTROLR909418111
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909413253 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909424721 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R909415511 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909419352 | PISTON PAD | 1 | ||
| R909422674 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R909449475 | SEALD | 1 | ||
| R902011851 | SEALD | 1 | ||
| R909425502 | POSITIONING PISTON | 1 | ||
| R909425503 | POSITIONING STUD | 1 | ||
| R909413241 | SPRING DISK | 1 | ||
| R909424360 | RING | 1 | ||
| R909413494 | COMPRESSION SPRING | 1 | ||
| R909418116 | COMPRESSION SPRING | 1 | ||
| R909413697 | SETSCREW | 1 | ||
| R909415563 | LEVER | 1 | ||
| R909413698 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909418112 | SCREW PLUG | 1 | ||
| R909419244 | SPRING BOLT | 1 | ||
| R909408271 | COMPRESSION SPRING | 1 | ||
| R909425555 | ADJUSTING BUSH | 1 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083101 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909156479 | R-RINGD | 1 | ||
| R909156543 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083489 | SETSCREW | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909424361 | BACKUP RING | 1 | ||
| R909419245 | PISTON | 1 | ||
| R909156539 | SNAP RING | 1 | ||
| R909156494 | NOZZLE | 1 | ||
| R909154024 | SCREW PLUGD | 1 |
