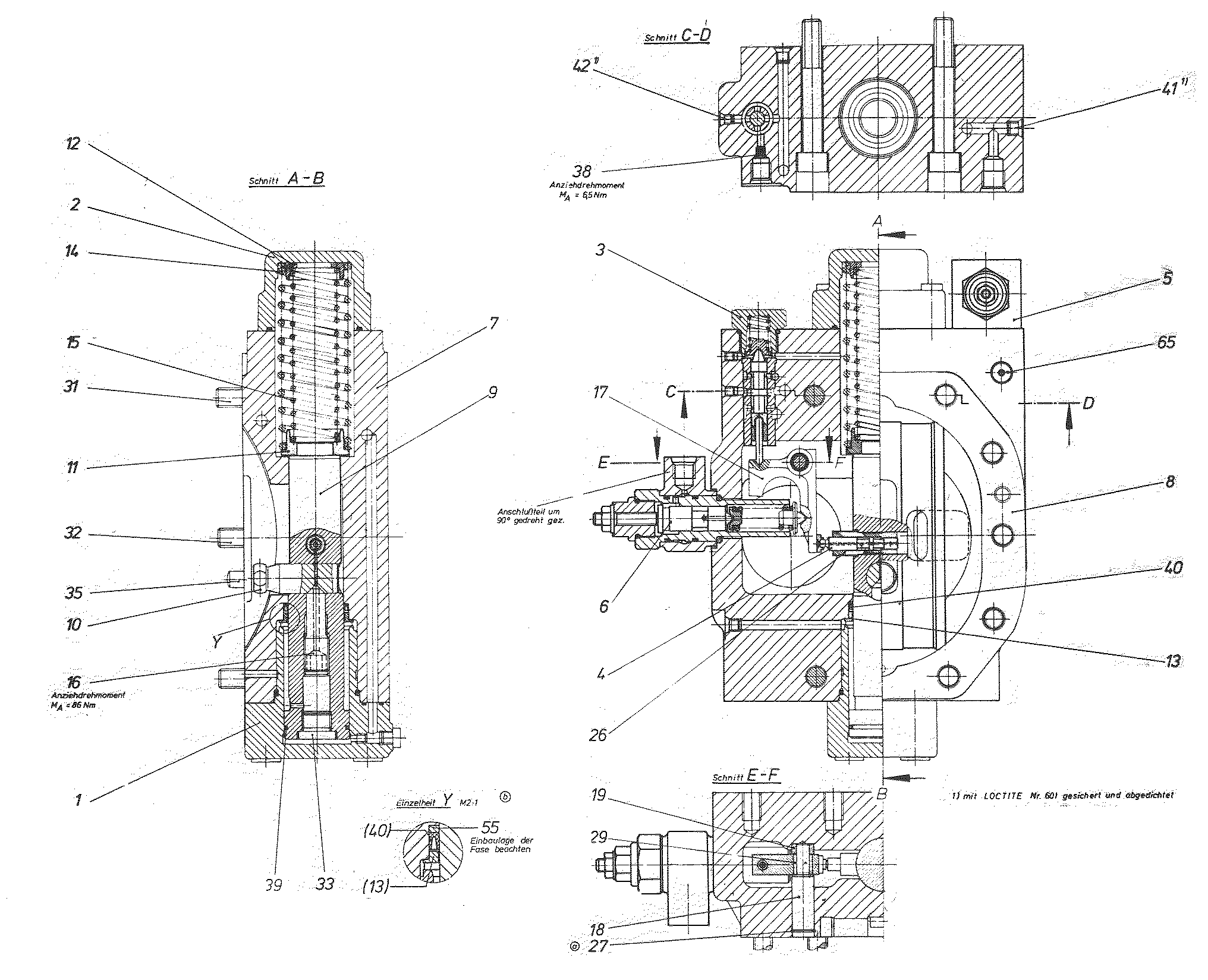

Baugruppe
CONTROLR909422784
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909413253 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909413296 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909415511 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| 4 | R909419352 | PISTON PAD | 1 | |
| R909418464 | SEQUENCE VALVE Stückliste der Baugruppe →L | 1 | ||
| R909422869 | ADJUSTING PART Stückliste der Baugruppe →L | 1 | ||
| R909416832 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902011851 | SEALD | 1 | ||
| R909425502 | POSITIONING PISTON | 1 | ||
| R909425503 | POSITIONING STUD | 1 | ||
| R909413241 | SPRING DISK | 1 | ||
| R909413492 | SPRING DISK | 1 | ||
| R909424360 | RING | 1 | ||
| R909413494 | COMPRESSION SPRING | 1 | ||
| R909413493 | COMPRESSION SPRING | 1 | ||
| R909413697 | SETSCREW | 1 | ||
| R909415563 | LEVER | 1 | ||
| R909413698 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909425555 | ADJUSTING BUSH | 1 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083101 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909156493 | NOZZLE | 1 | ||
| R909156479 | R-RINGD | 1 | ||
| R909156543 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909424361 | BACKUP RING | 1 | ||
| R909154024 | SCREW PLUGD | 1 |
