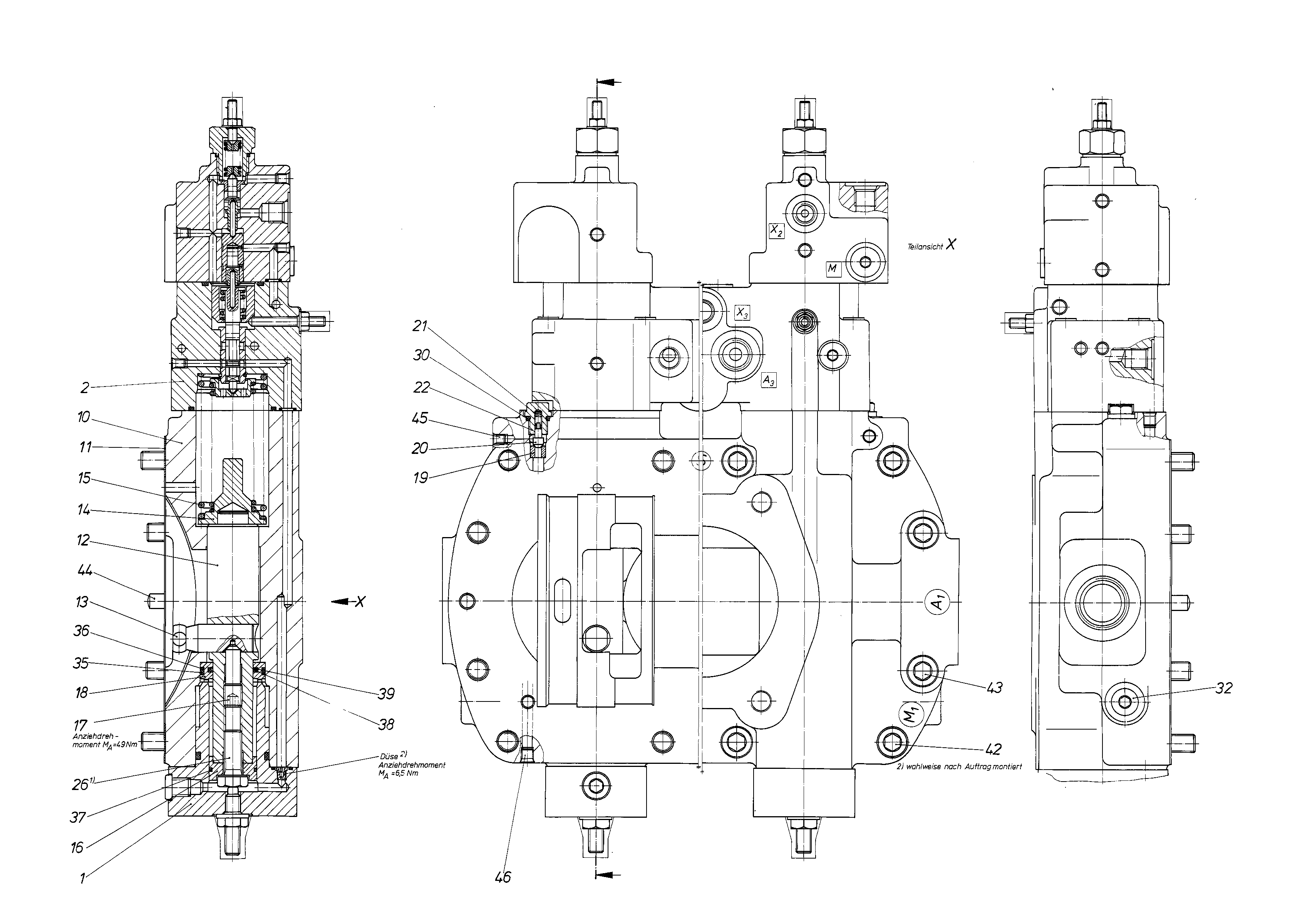

Baugruppe
CONTROLR909427987
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909447495 | COVER Stückliste der Baugruppe →L | 2 | ||
| R909428129 | CONTROL UNIT Stückliste der Baugruppe →L | 1 | ||
| R909430437 | CONTROL HOUSING | 1 | ||
| R909435391 | SEALD | 1 | ||
| R909650531 | SEAL | 1 | ||
| R909426600 | POSITIONING PISTON | 2 | ||
| R909425459 | POSITIONING STUD | 2 | ||
| R909430346 | SPRING DISK | 2 | ||
| R909425746 | COMPRESSION SPRING | 2 | ||
| R909426605 | PISTON | 2 | ||
| R909409591 | SETSCREW | 2 | ||
| R909426606 | SEAL RING | 2 | ||
| R909425801 | BUSHING | 2 | ||
| R909415579 | VALVE CONE | 2 | ||
| R909426948 | COMPRESSION SPRING | 2 | ||
| R902035187 | SCREW PLUG | 2 | ||
| R909083707 | HEXAGON SCREW | 2 | ||
| R909083749 | O-RINGD | 2 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909086347 | O-RINGD | 2 | ||
| R909157667 | BACKUP RINGD | 2 | ||
| R902602841 | STEEL SEALING RINGD | 2 | ||
| R909157666 | ROD SEALD | 2 | ||
| R909087513 | O-RINGD | 2 | ||
| R909083093 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083100 | SOCKET HEAD CAP SCREW | 4 | ||
| R913007909 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 |
