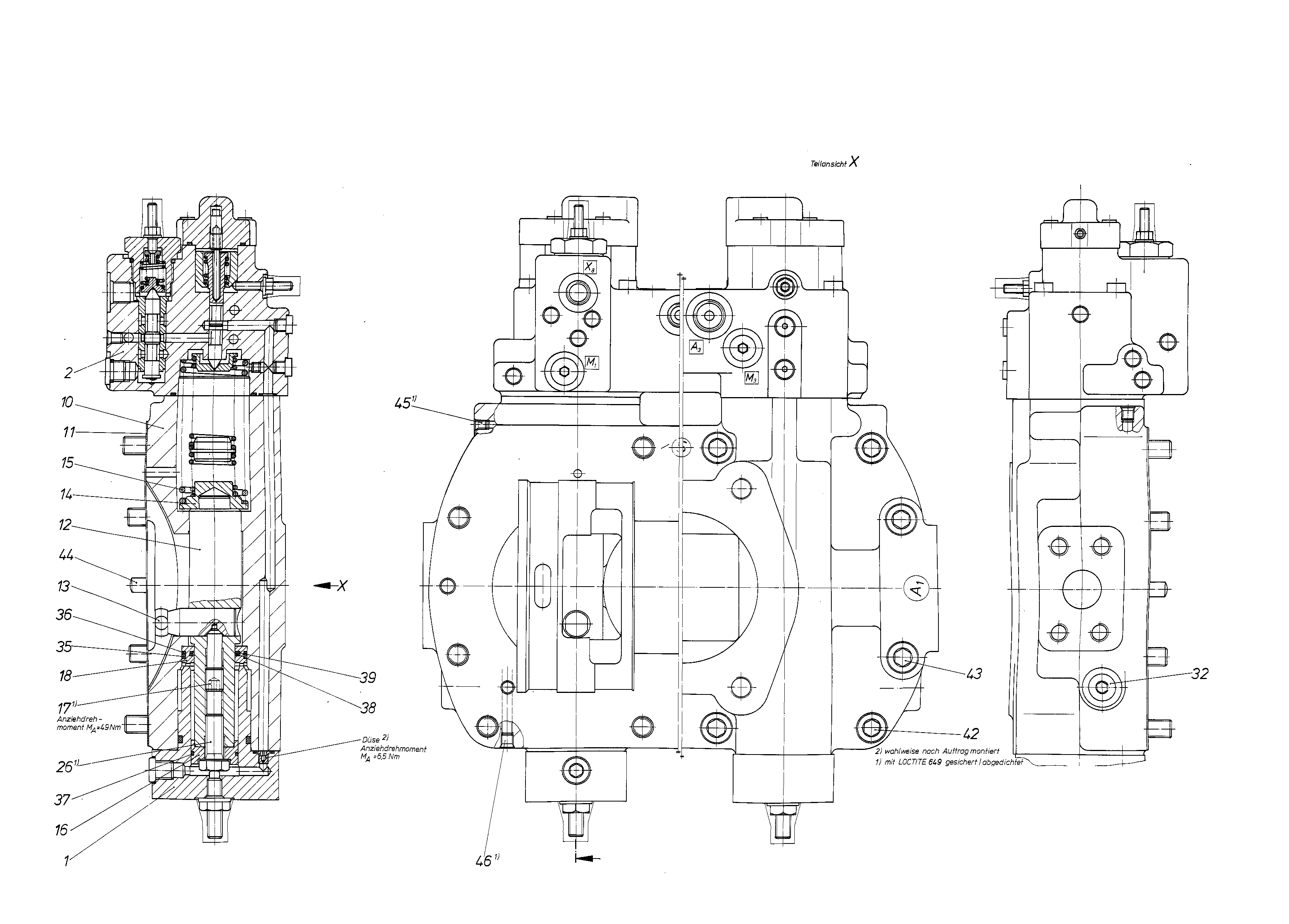

Baugruppe
CONTROLR909429767
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909447495 | COVER Stückliste der Baugruppe →L | 2 | ||
| 2 | R909429769 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | |
| R909436042 | CONTROL HOUSING | 1 | ||
| 11 | R909650531 | SEALD | 1 | |
| 12 | R909426600 | POSITIONING PISTON | 2 | |
| 13 | R909425459 | POSITIONING STUD | 2 | |
| R909431993 | SPRING DISK | 2 | ||
| 15 | R909425746 | COMPRESSION SPRING | 2 | |
| 16 | R909426605 | PISTON | 2 | |
| R909409591 | SETSCREW | 2 | ||
| 18 | R909426606 | SEAL RING | 2 | |
| R909083707 | HEXAGON SCREW | 2 | ||
| 35 | R909086347 | O-RINGD | 2 | |
| R909157667 | BACKUP RINGD | 2 | ||
| 37 | R902602841 | STEEL SEALING RINGD | 2 | |
| 38 | R909157666 | ROD SEALD | 2 | |
| 39 | R909087513 | O-RINGD | 2 | |
| R909083093 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083100 | SOCKET HEAD CAP SCREW | 4 | ||
| R913007909 | STRAIGHT PIN | 2 | ||
| 45 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| 46 | R909831319 | DOUBLE BREAK-OFF PLUG | 3 |
