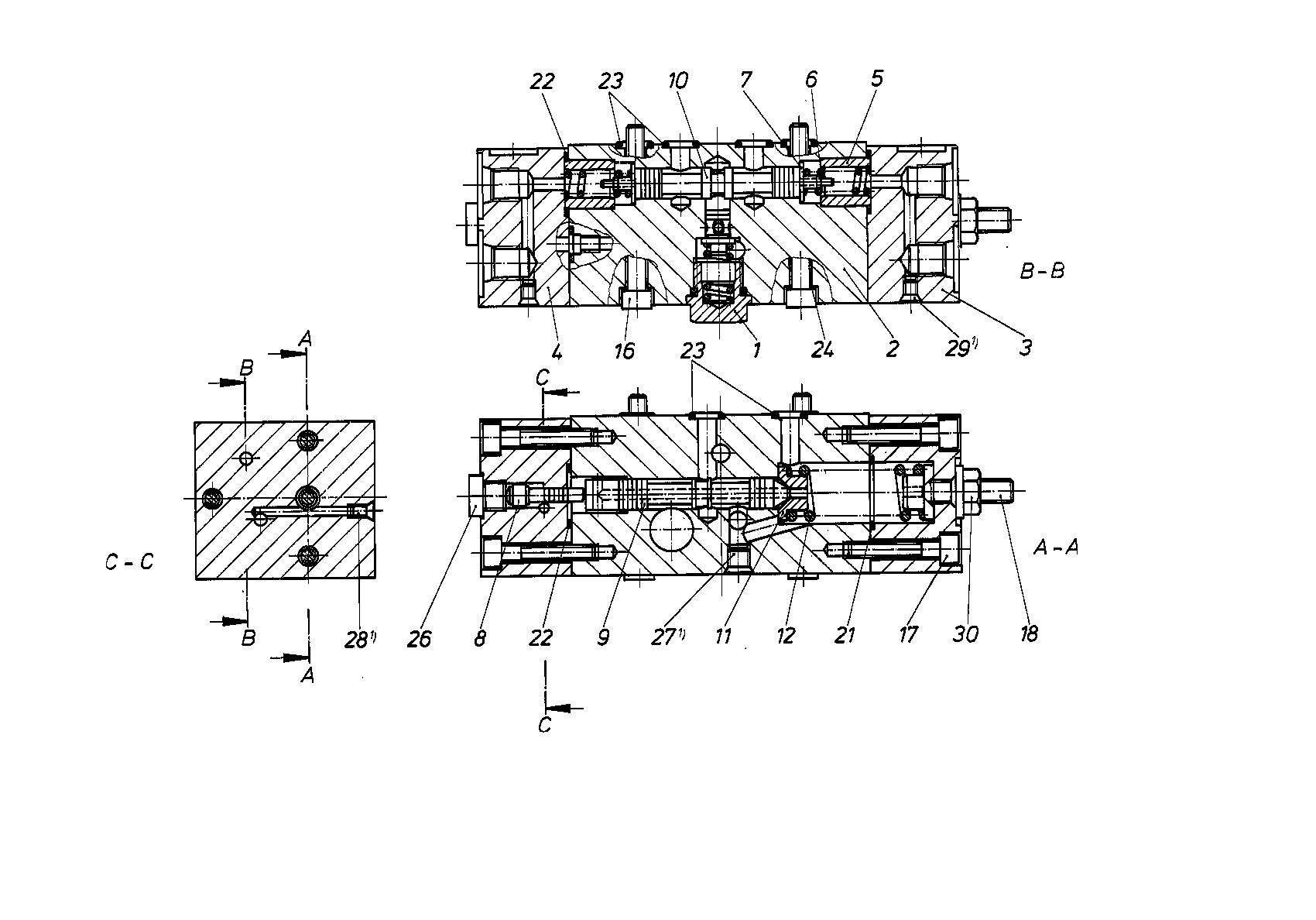

Baugruppe
SEQUENCE VALVER909433084
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909433086 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 1 | |
| R909432249 | VALVE HOUSING | 1 | ||
| 3 | R909432250 | CONNECTION PLATE | 1 | |
| R909432251 | CONNECTION PLATE | 1 | ||
| 5 | R909432252 | STOP BUSHING | 2 | |
| 6 | R909409095 | COMPRESSION SPRING | 2 | |
| 7 | R909400503 | SPRING DISK | 2 | |
| R909432253 | MEASURING PISTON | 1 | ||
| 9 | R909432254 | CONTROL PISTON | 1 | |
| R909432255 | COMMAND PISTON | 1 | ||
| R909432256 | SPRING DISK | 2 | ||
| R909432257 | COMPRESSION SPRING | 2 | ||
| R909083029 | SOCKET HEAD CAP SCREW | 4 | ||
| 17 | R909083024 | SOCKET HEAD CAP SCREW | 6 | |
| 18 | R909157405 | SETSCREW | 1 | |
| 21 | R909086250 | O-RINGD | 1 | |
| R909084939 | O-RINGD | 3 | ||
| R909086498 | O-RINGD | 7 | ||
| R909084302 | SEAL RINGD | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| 27 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 28 | R900078091 | DOUBLE BREAK-OFF PLUG | 1 | |
| 29 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| 30 | R909152707 | SEALING NUTD | 1 |
