Baugruppe

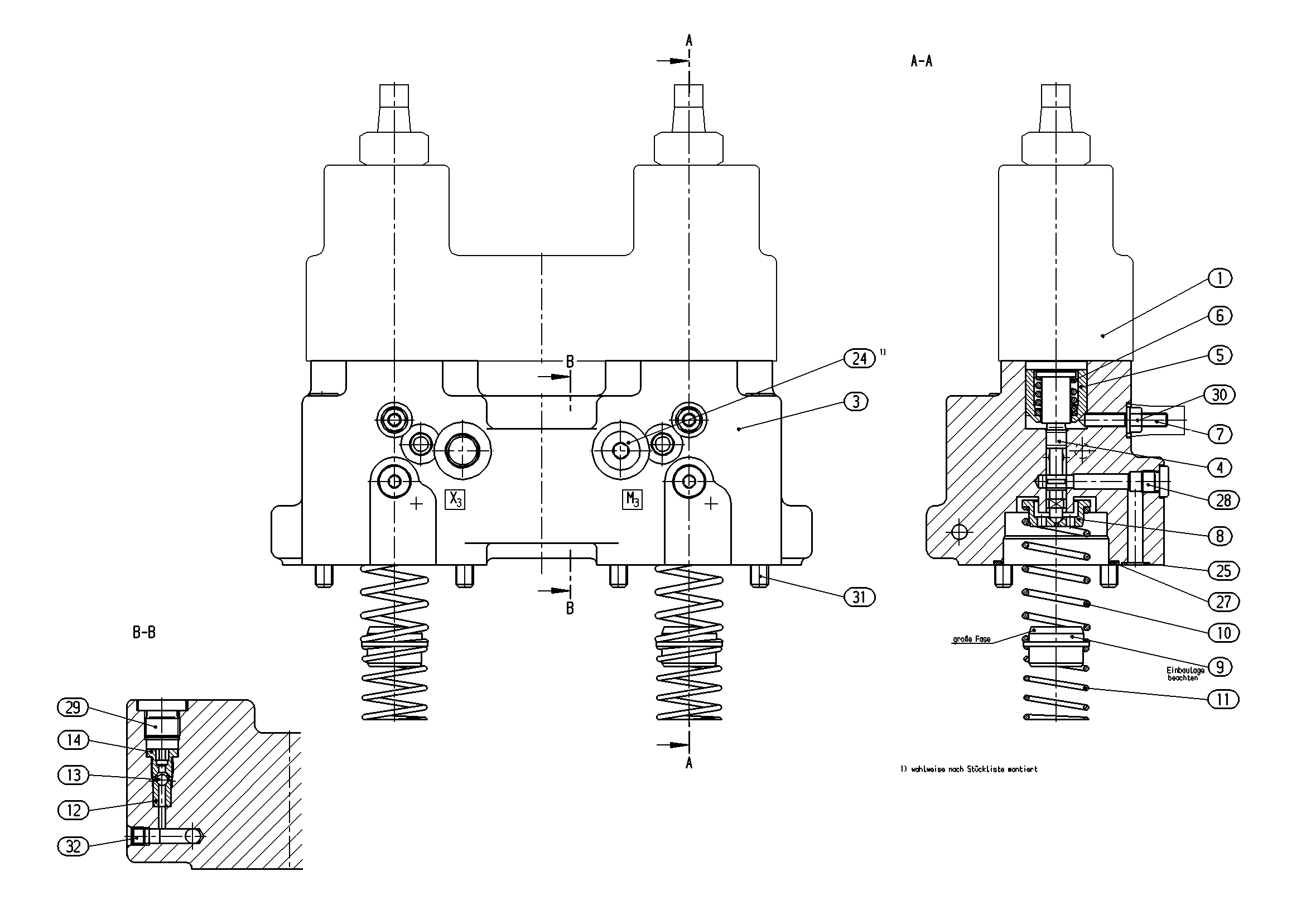

CONTROL UNITR909610430
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909610431 | CONTROL UNIT Stückliste der Baugruppe →L | 1 | ||
| R909651016 | CONTROL HOUSING | 1 | ||
| R909449944 | CONTROL PISTON | 2 | ||
| R909449344 | SPRING BUSH | 2 | ||
| R909449900 | COMPRESSION SPRING | 2 | ||
| R909420992 | SETSCREW | 2 | ||
| R909432513 | SPRING DISK | 2 | ||
| R909432511 | SPRING DISK | 2 | ||
| R902000274 | COMPRESSION SPRING | 2 | ||
| R902000275 | COMPRESSION SPRING | 2 | ||
| R909650250 | BUSHING | 1 | ||
| R909083258 | BALL | 1 | ||
| R909650251 | VALVE SCREW | 1 | ||
| R909085709 | O-RINGD | 4 | ||
| R909151810 | O-RINGD | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909153816 | SCREW PLUGD | 1 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909083051 | SOCKET HEAD CAP SCREW | 6 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 8 |
