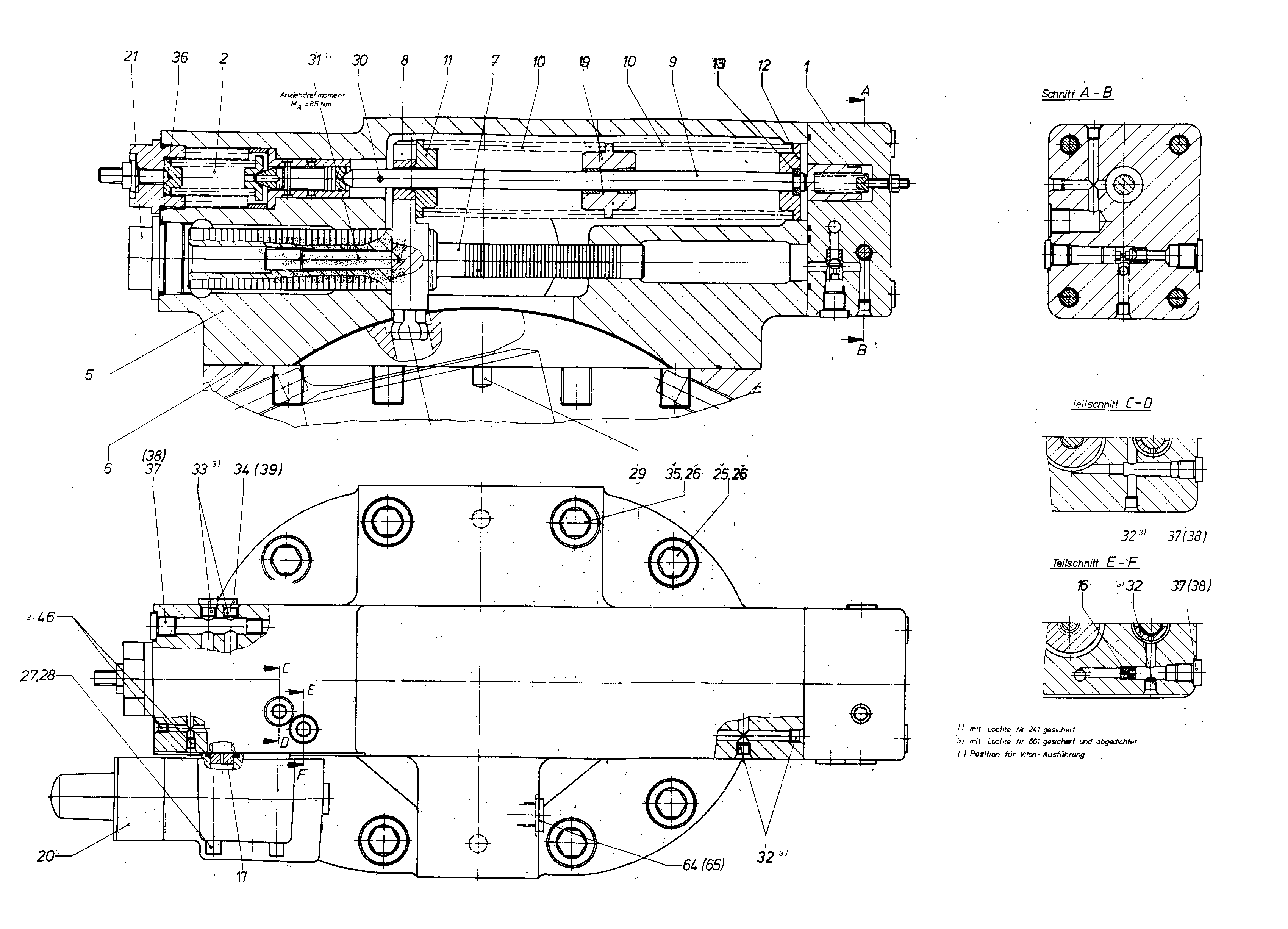

Baugruppe
CONTROLR910808326
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 40 | R910599034 | COVER Stückliste der Baugruppe →L | 1 | |
| 40 | R910848875 | CONTROL PART Stückliste der Baugruppe →L | 1 | |
| 41 | R910596922 | SPRING GUIDE Stückliste der Baugruppe →L | 1 | |
| 50 | R910802778 | COVER PLATE | 1 | |
| 50 | R910945102 | O-RINGD | 1 | |
| 50 | R910842001 | POSITIONING PISTON | 1 | |
| 50 | R902413797 | POSITIONING STUD | 1 | |
| 50 | R910583979 | GUIDE ROD | 1 | |
| 51 | R910597007 | COMPRESSION SPRING | 2 | |
| 51 | R910584592 | SPRING DISK | 1 | |
| 51 | R910584584 | SPRING DISK | 1 | |
| 51 | R910583855 | RING | 1 | |
| 51 | R910505943 | THROTTLING PLATE | 1 | |
| 51 | R910839299 | THROTTLE DISC | 1 | |
| 52 | R910583758 | SCREW PLUG | 1 | |
| 53 | R910807001 | SETSCREW | 1 | |
| 62 | R901327580 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | |
| 62 | R910110043 | SOCKET HEAD CAP SCREW | 6 | |
| 62 | R910100838 | SPRING LOCK WASHER | 8 | |
| 62 | R910295396 | SOCKET HEAD CAP SCREW | 4 | |
| 62 | R910100765 | SPRING LOCK WASHER | 4 | |
| 62 | R910514179 | STRAIGHT PIN | 2 | |
| 63 | R910977277 | SLOTTED SPRING PIN | 1 | |
| 63 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 | |
| 63 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 63 | R909151694 | SCREW PLUGD | 1 | |
| 63 | R910120901 | SOCKET HEAD CAP SCREW | 2 | |
| 63 | R910586897 | O-RINGD | 1 | |
| 63 | R909151692 | SCREW PLUGD | 3 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 66 | R909153816 | SCREW PLUGD | 1 |
