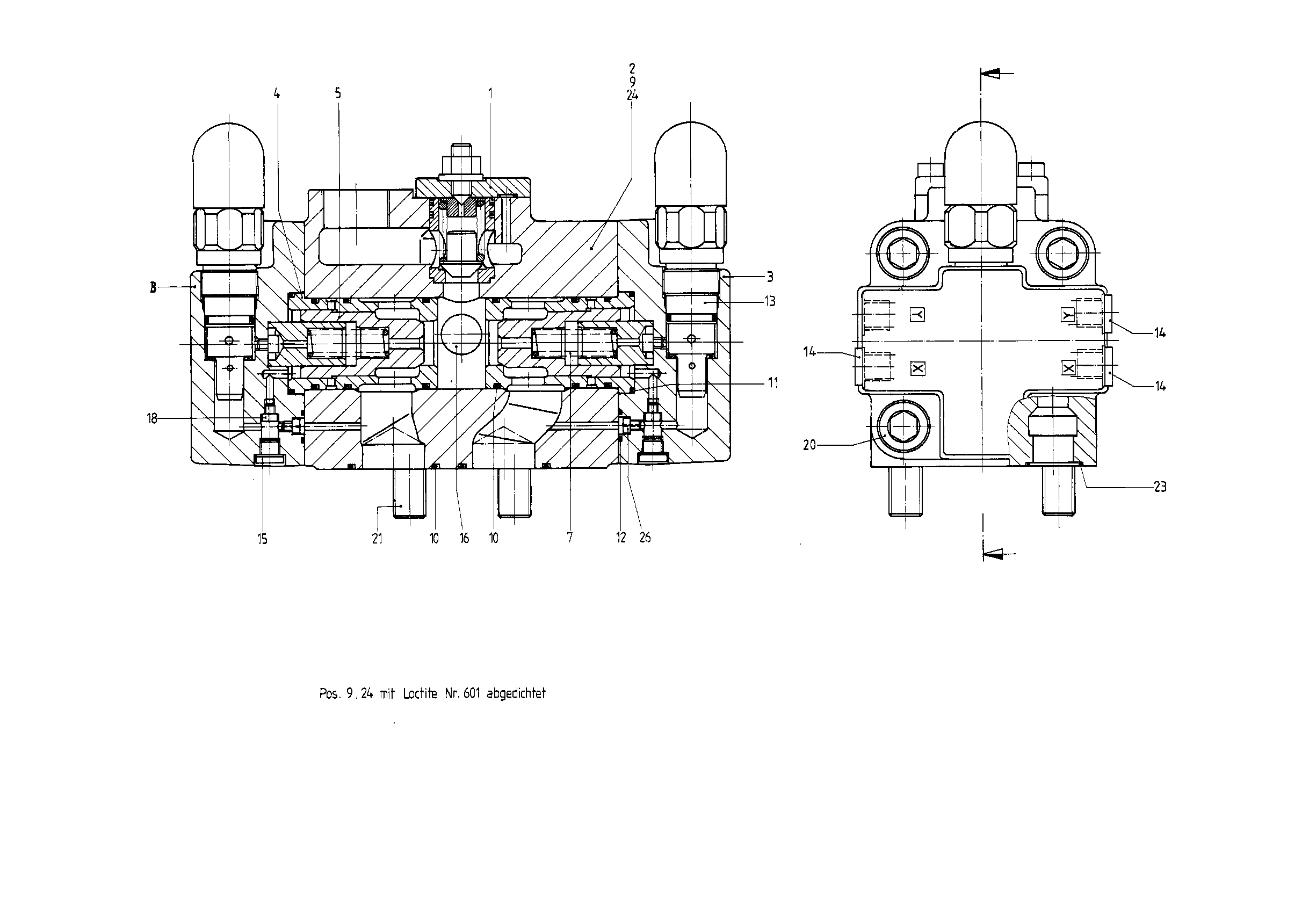

Baugruppe
VALVE BLOCKR910961102
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910900480 | PILOT VALVE Stückliste der Baugruppe →L | 1 | ||
| 2 | R910902406 | VALVE HOUSING | 1 | |
| 3 | R910906473 | COVER Stückliste der Baugruppe →L | 2 | |
| R910417386 | VALVE INSERT | 2 | ||
| 5 | R910417408 | VALVE SPOOL | 2 | |
| 7 | R910037281 | COMPRESSION SPRING | 2 | |
| 9 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| 10 | R910113646 | O-RINGD | 8 | |
| 11 | R910470325 | O-RINGD | 2 | |
| 12 | R910080543 | O-RINGD | 2 | |
| R900438939 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 | ||
| 14 | R909153930 | SCREW PLUGD | 6 | |
| 15 | R909156649 | SCREW PLUGD | 2 | |
| 16 | R909156654 | SCREW PLUGD | 2 | |
| 18 | R910100587 | NOZZLE | 2 | |
| R910120499 | SOCKET HEAD CAP SCREW | 8 | ||
| R910120553 | SOCKET HEAD CAP SCREW | 4 | ||
| R910923187 | O-RINGD | 1 | ||
| 24 | R909831317 | DOUBLE BREAK-OFF PLUG | 2 | |
| 26 | R910100587 | NOZZLE | 2 |
