Einheit · AXIAL-PISTON MOTOR
A A10F D 85 /52W-VRW81B125OR902463476
Axialkolbenmotor Bosch Rexroth Baureihe A10FD, Typschlüssel AA10FD85/52W-VRW81B125O, Materialnummer R902463476.
- Nummer
- R902463476
- Typschlüssel
- A A10F D 85 /52W-VRW81B125O
- Gruppe
- A10FD 85
- Ausgabe
- 05/2023

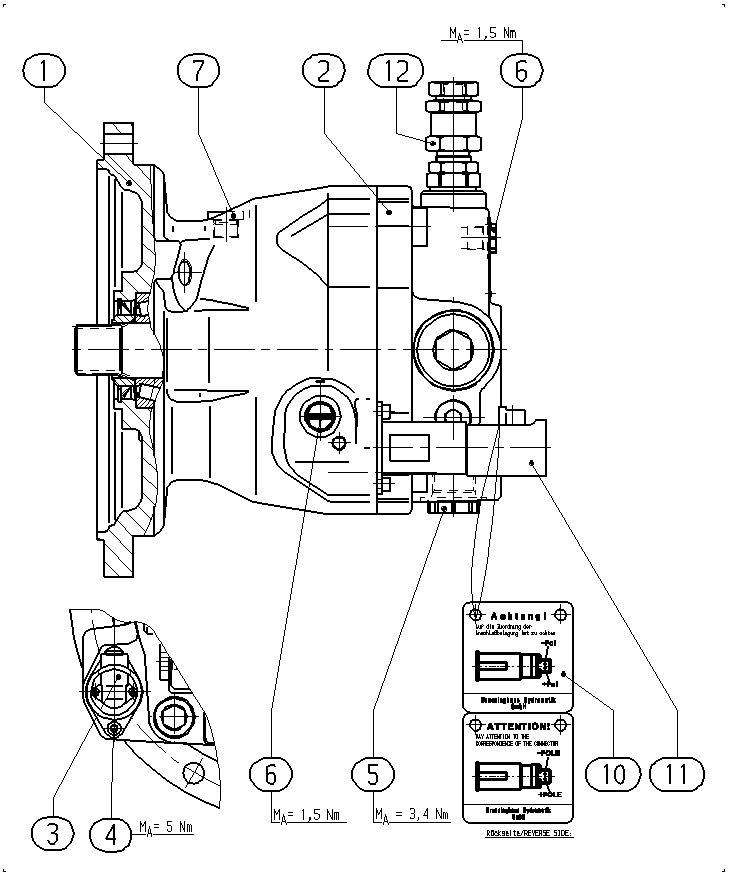

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902431558 | BASE UNIT Stückliste der Baugruppe →L | 1 | ||
| R902437926 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| 3 | R971060477 | PRESSURE RELIEF VALVE | 1 | |
| 4 | R910109215 | SOCKET HEAD CAP SCREW | 2 | |
| R909156864 | SCREW PLUG | 1 | ||
| 10 | R902416144 | REFERENCE PLATE | 1 | |
| 11 | R902544506 | PROTECTIVE TUBE | 1 | |
| R901341539 | PRESSURE RELIEF VALVE | 2 | ||
| 70 | R902603191 | SEAL SCREW | 3 | |
| 73 | R909831377 | GUARD PLUG | 2 | |
| 75 | R909830326 | NAMEPLATE Stückliste der Baugruppe →L | 1 | |
| 76 | R902602015 | SEAL SCREW | 2 |
