Einheit · VARIABLE MOTOR
VARIABLEMOTOR*G*R909070903
Hydraulikeinheit Bosch Rexroth, Typschlüssel VARIABLEMOTOR*G*, Materialnummer R909070903.
- Nummer
- R909070903
- Typschlüssel
- VARIABLEMOTOR*G*
- Gruppe
- VARIABLE MOTOR
- Ausgabe
- 03/2020

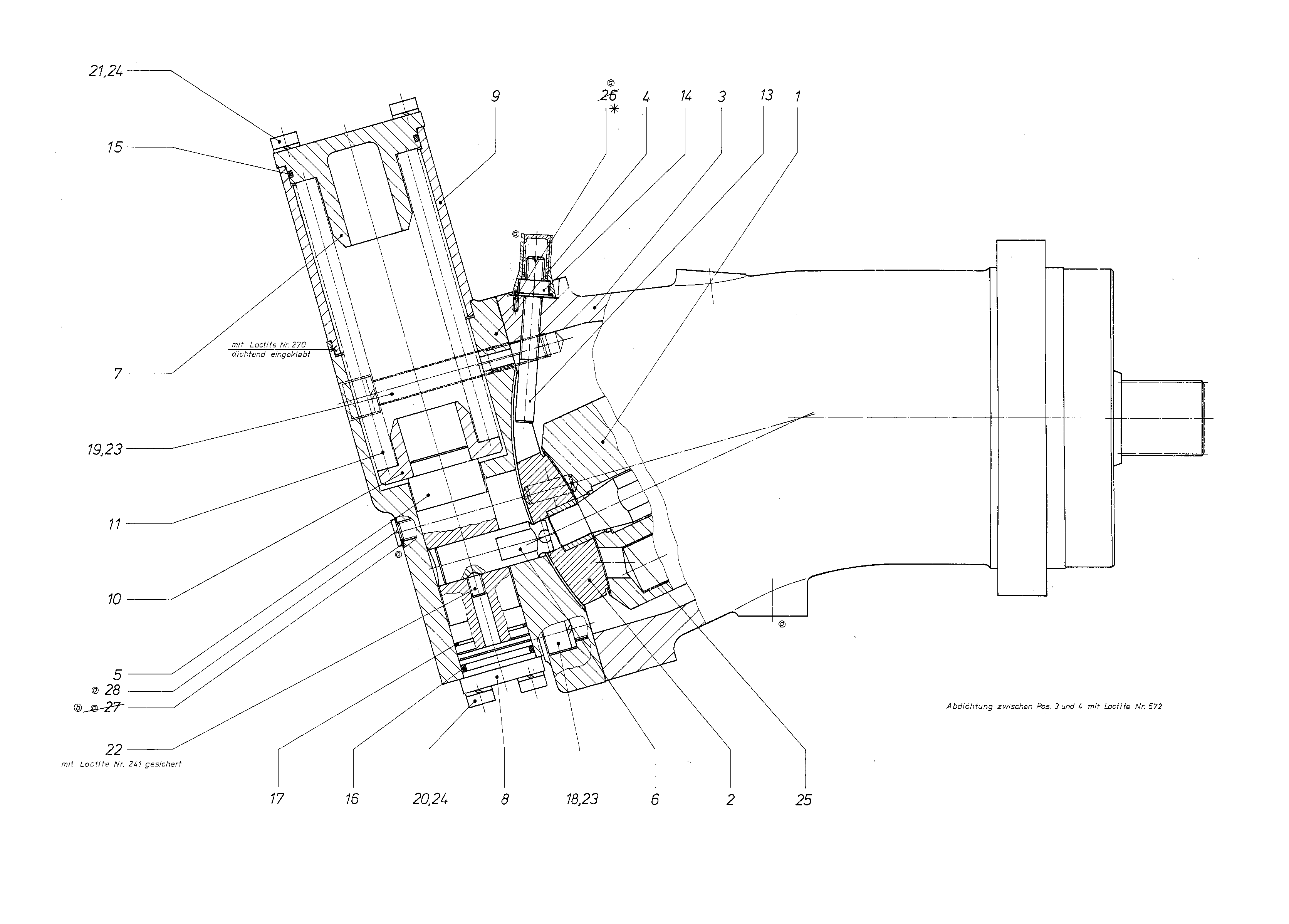

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909066822 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909066779 | CONTROL LENS | 1 | ||
| R909066811 | HOUSING | 1 | ||
| R909071809 | COVER PLATE | 1 | ||
| R909071810 | PISTON | 1 | ||
| R909067055 | POSITIONING STUD | 1 | ||
| R909067054 | COVER | 1 | ||
| R909071811 | COVER | 1 | ||
| R909067059 | PIPE SEGMENT | 1 | ||
| R909067057 | SPRING DISK | 1 | ||
| R909063741 | COMPRESSION SPRING | 1 | ||
| 12 | R909440452 | SEALD | 1 | |
| R909152620 | SETSCREW | 1 | ||
| R909152459 | SEALING NUTD | 1 | ||
| R909083822 | O-RINGD | 1 | ||
| R909150107 | O-RINGD | 1 | ||
| R909084975 | R-RINGD | 1 | ||
| R909083129 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083148 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083205 | SOCKET HEAD CAP SCREW | 4 | ||
| R909086698 | SOCKET HEAD CAP SCREW | 4 | ||
| R909086924 | SETSCREW | 1 | ||
| R909083254 | SPRING LOCK WASHER | 8 | ||
| R909083252 | SPRING LOCK WASHER | 8 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| 26 | R909084769 | STRAIGHT GROOVED DOWEL PIN | 1 |
