Einheit · VARIABLE DOUBLE PUMP
VERSTELLDOPPELPUMPE*G*R909070907
Hydraulikeinheit Bosch Rexroth, Typschlüssel VERSTELLDOPPELPUMPE*G*, Materialnummer R909070907.
- Nummer
- R909070907
- Typschlüssel
- VERSTELLDOPPELPUMPE*G*
- Gruppe
- VARIABLE DOUBLE PUMP
- Ausgabe
- 03/2020

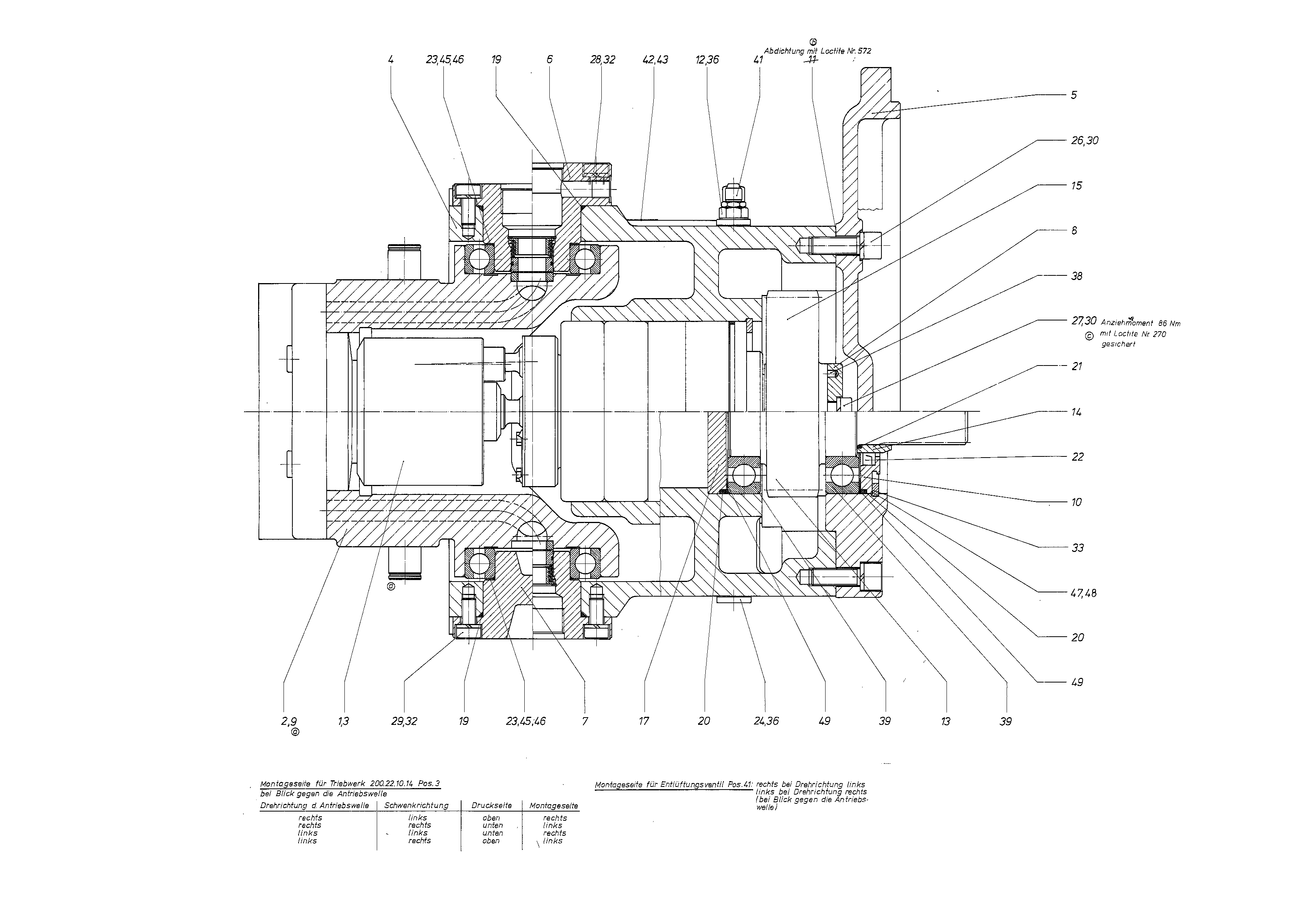

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909063494 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| R909070904 | DUMMY Stückliste der Baugruppe →L | 2 | ||
| 3 | R909063534 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| R909063492 | PUMP HOUSING | 1 | ||
| 5 | R909063484 | GEAR COVER | 1 | |
| R909063487 | FLANGE | 2 | ||
| R909062544 | FLANGE | 2 | ||
| 8 | R909008471 | COVER | 2 | |
| 10 | R909063489 | LOCKING RINGD | 1 | |
| R909059794 | SCREW | 1 | ||
| R909401280 | DRIVE PINION | 1 | ||
| 14 | R909063490 | BUSHINGD | 1 | |
| R909401279 | TOOTHED WHEEL | 2 | ||
| R909063488 | COVER | 1 | ||
| R909083785 | O-RINGD | 4 | ||
| R909084426 | O-RINGD | 2 | ||
| 21 | R909086375 | O-RINGD | 1 | |
| R909084494 | SHAFT SEALING RINGD | 1 | ||
| 23 | R909150998 | SHIM RING | 4 | |
| 24 | R909153815 | SCREW PLUGD | 5 | |
| R909083090 | SOCKET HEAD CAP SCREW | 14 | ||
| R909083205 | SOCKET HEAD CAP SCREW | 2 | ||
| 28 | R909083199 | SOCKET HEAD CAP SCREW | 12 | |
| R909083196 | SOCKET HEAD CAP SCREW | 12 | ||
| R909083252 | SPRING LOCK WASHER | 16 | ||
| R909083251 | SPRING LOCK WASHER | 24 | ||
| R909083418 | RETAINING RING | 1 | ||
| R909152731 | SEAL RINGD | 1 | ||
| 38 | R909084149 | STRAIGHT PIN | 2 | |
| R909150670 | DEEP-GROOVE BALL BEARING | 2 | ||
| 41 | R909086883 | BLEEDER VALVE | 1 | |
| 42 | R909008900 | PLATE | 1 | |
| 43 | R909084287 | GROOVED NAIL | 2 | |
| 45 | R909150266 | SHIM RING | 4 | |
| 46 | R909083428 | SHIM RING | 4 | |
| R909086472 | SHIM RING | 2 | ||
| R909086471 | SHIM RING | 1 | ||
| R909083432 | SHIM RING | 2 |
