Einheit · AXIAL-PISTON PUMP
A4V71HW2.0RXO1O1O-SR909415729

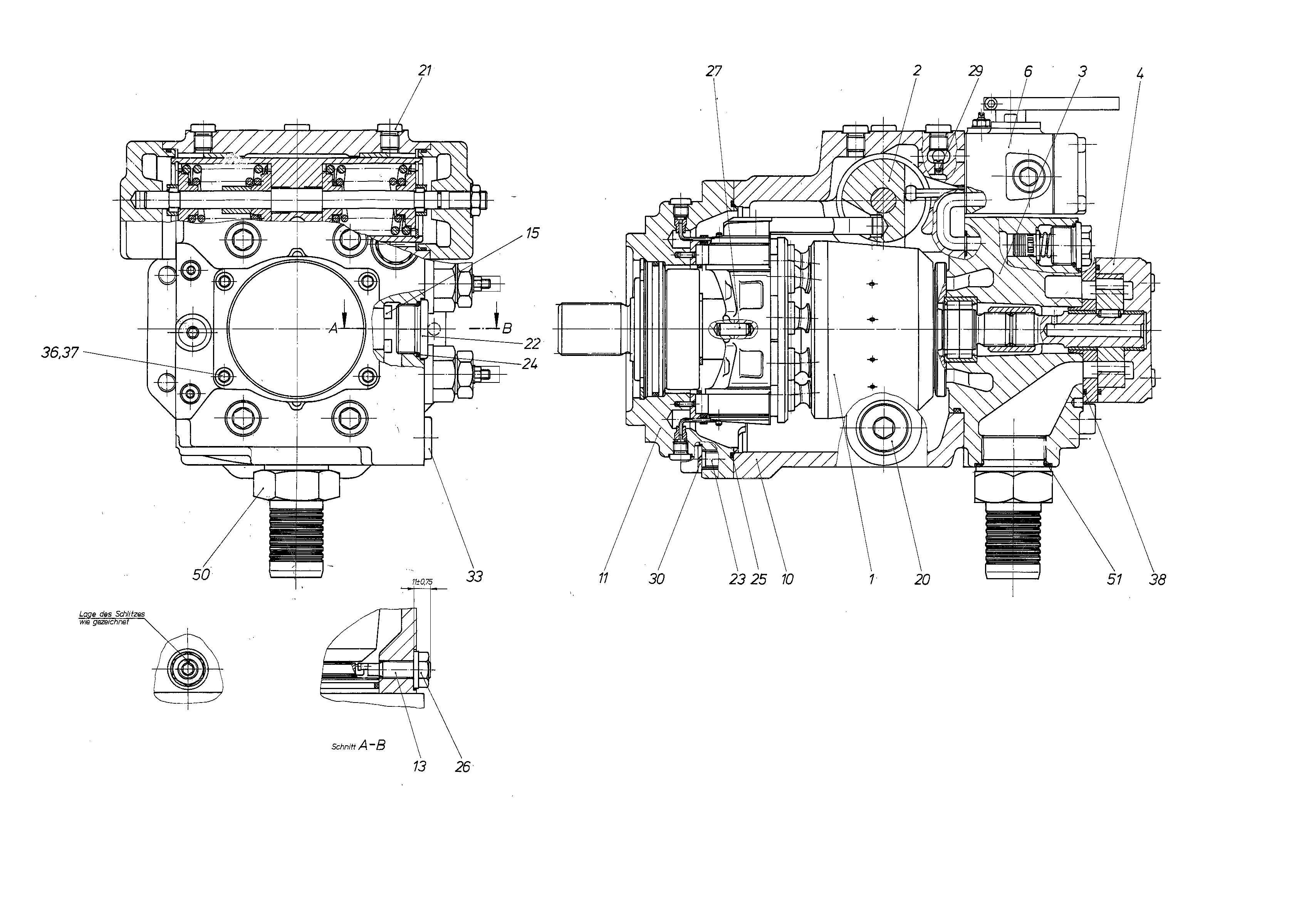

Axialkolbenpumpe Bosch Rexroth Baureihe A4V, Typschlüssel A4V71HW2.0RXO1O1O-S, Materialnummer R909415729.
- Nummer
- R909415729
- Typschlüssel
- A4V71HW2.0RXO1O1O-S
- Gruppe
- A4V 71
- Ausgabe
- 12/2019
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909415722 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909400459 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| 3 | R909428822 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | |
| R909400518 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| 6 | — | CONTROL UNIT Stückliste der Baugruppe →L | 1 | |
| 10 | R909405623 | HOUSING | 1 | |
| 11 | R909405621 | FLANGE Stückliste der Baugruppe →L | 1 | |
| R909405758 | ECCENTRIC SCREW | 1 | ||
| R909432428 | LOCKING PIECE | 1 | ||
| R909153891 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 6 | ||
| 22 | R909083228 | SCREW PLUG | 1 | |
| 23 | R909086573 | SOCKET HEAD CAP SCREW | 8 | |
| 24 | R909086731 | O-RINGD | 1 | |
| 25 | R909086684 | O-RINGD | 1 | |
| 26 | R909087405 | SEALING NUTD | 1 | |
| R909087752 | STRAIGHT PIN | 1 | ||
| 29 | R909156493 | NOZZLE | 2 | |
| R909083252 | SPRING LOCK WASHER | 8 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| 40 | R909409512 | COMPRESSION SPRING | 1 | |
| R909415184 | TUBE FITTING | 1 | ||
| 51 | R909152747 | SEAL RINGD | 1 | |
| 60 | R909435040 | COUPLING FLANGE | 1 | |
| 61 | — | CENTERING DISK | 1 | |
| 62 | R909086138 | HEXAGON SCREW | 1 | |
| 63 | R909156848 | LOCKING WASHER | 1 | |
| 98 | R902166131 | SEAL KIT | 1 |
