Einheit · AXIAL-PISTON PUMP
A4V71DA2.0R1O1B1OR909433550
Axialkolbenpumpe Bosch Rexroth Baureihe A4V, Typschlüssel A4V71DA2.0R1O1B1O, Materialnummer R909433550.
- Nummer
- R909433550
- Typschlüssel
- A4V71DA2.0R1O1B1O
- Gruppe
- A4V 71
- Ausgabe
- 06/2020

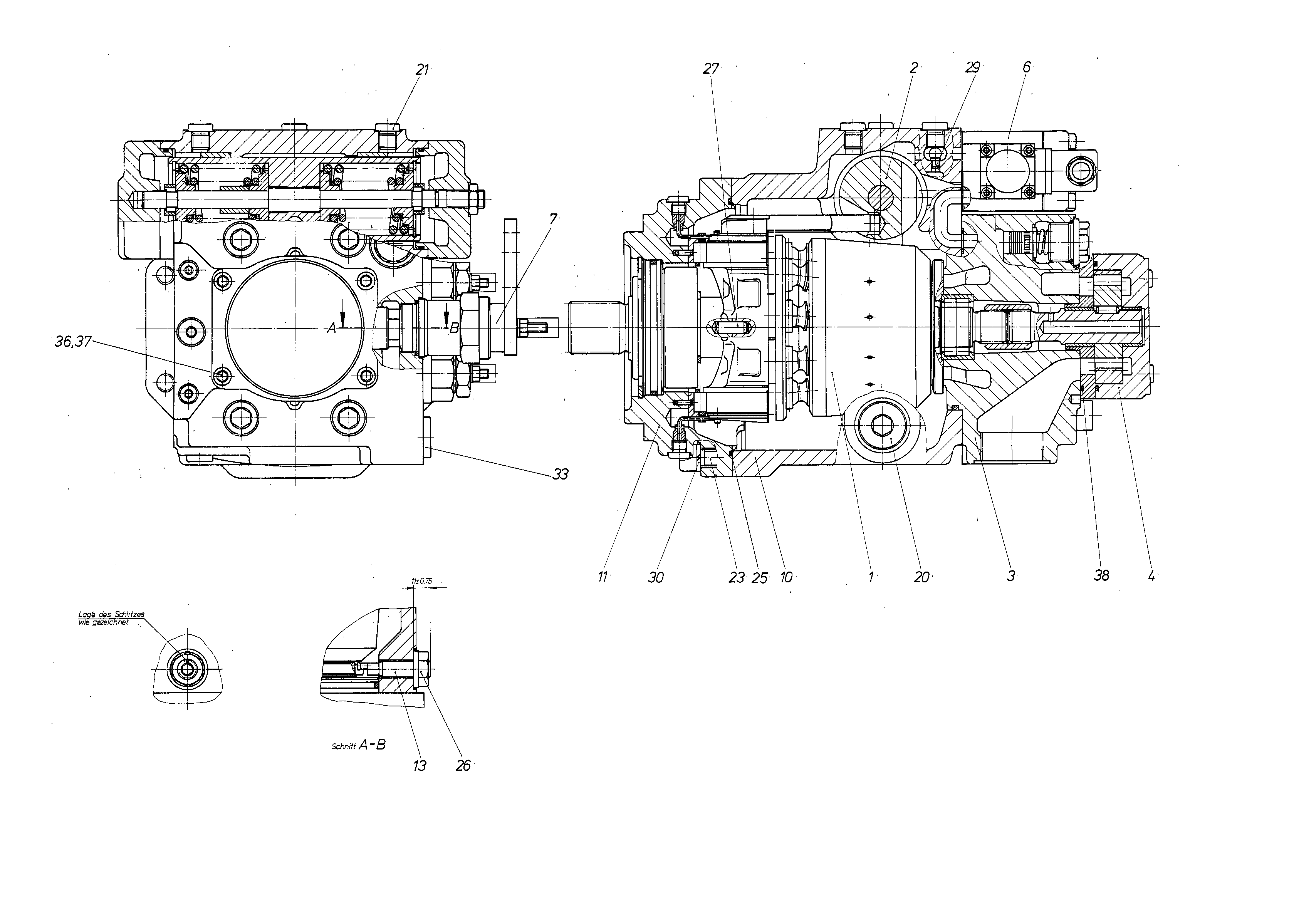

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909400440 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909434069 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R909428822 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R909400518 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R909400500 | DIRECTIONAL-CONTROL VALVE Stückliste der Baugruppe →L | 1 | ||
| 7 | R909606420 | CONTROL CARTRIDGE Stückliste der Baugruppe →L | 1 | |
| 10 | R909405623 | HOUSING | 1 | |
| 11 | R909405621 | FLANGE Stückliste der Baugruppe →L | 1 | |
| R909405758 | ECCENTRIC SCREW | 1 | ||
| R909153891 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 6 | ||
| 23 | R909086573 | SOCKET HEAD CAP SCREW | 8 | |
| 25 | R909086684 | O-RINGD | 1 | |
| R909087405 | SEALING NUTD | 1 | ||
| R909087752 | STRAIGHT PIN | 1 | ||
| 29 | R909156493 | NOZZLE | 2 | |
| R909083252 | SPRING LOCK WASHER | 8 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| 98 | R902166121 | SEAL KIT | 1 |
