Einheit · AXIAL-PISTON PUMP
A4V56MS1.0L0C5O1O-SR909446726
Axialkolbenpumpe Bosch Rexroth Baureihe A4V, Typschlüssel A4V56MS1.0L0C5O1O-S, Materialnummer R909446726.
- Nummer
- R909446726
- Typschlüssel
- A4V56MS1.0L0C5O1O-S
- Gruppe
- A4V 56
- Ausgabe
- 01/2018

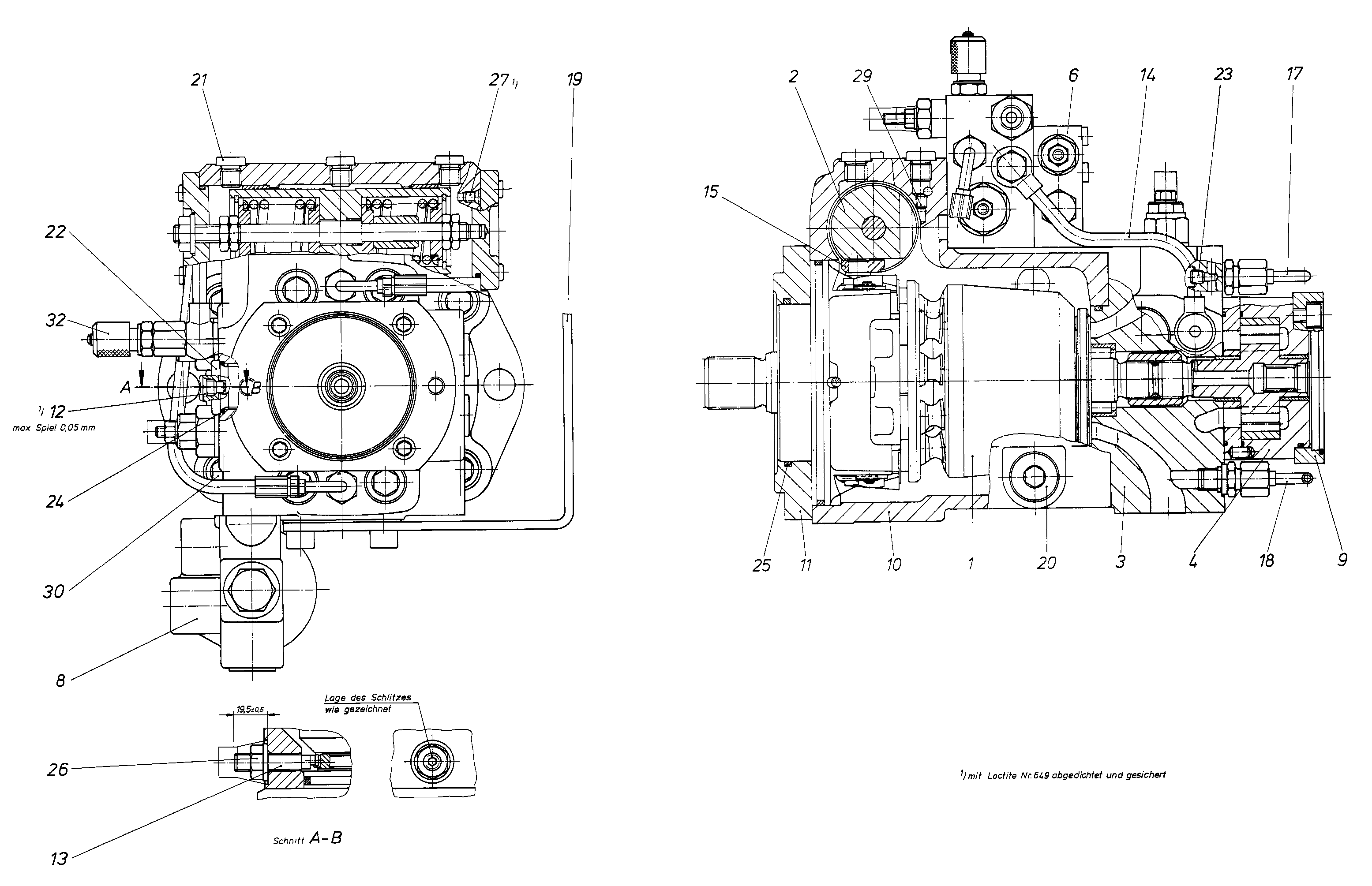

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909434788 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909434562 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R909080273 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R909401743 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R909434464 | TORQUE-PRESSURE CONTROL VALVE Stückliste der Baugruppe →L | 1 | ||
| R909411495 | MOUNTABLE FILTER Stückliste der Baugruppe →L | 1 | ||
| R909401766 | THROUGH DRIVE ADAPTER Stückliste der Baugruppe →L | 1 | ||
| R909405945 | HOUSING | 1 | ||
| R909074129 | FLANGE | 1 | ||
| R909414043 | ANTI-TWIST LOCK | 1 | ||
| R909414044 | ANTI-TWIST LOCK | 1 | ||
| R909405757 | ECCENTRIC SCREW | 1 | ||
| — | HYDRAULIC LINE Stückliste der Baugruppe →L | 1 | ||
| R909425992 | SLIDER | 1 | ||
| R902029417 | HYDRAULIC LINE Stückliste der Baugruppe →L | 1 | ||
| R902029416 | HYDRAULIC LINE Stückliste der Baugruppe →L | 1 | ||
| R909437524 | SHIPPING PROTECTION Stückliste der Baugruppe →L | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 5 | ||
| R909084400 | SCREW PLUG | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909083825 | O-RINGD | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156492 | NOZZLE | 2 | ||
| R909153817 | SOCKET HEAD CAP SCREW | 4 | ||
| R909830659 | TEST POINT | 4 | ||
| 98 | R902166089 | SEAL KIT | 1 |
