Einheit · ADJUSTING PIECE
VERST. A7V 250 DR-V FERNGEST.R910853453
Verstellteil Bosch Rexroth Baureihe A7V, Typschlüssel VERST.A7V250DR-VFERNGEST., Materialnummer R910853453.
- Nummer
- R910853453
- Typschlüssel
- VERST. A7V 250 DR-V FERNGEST.
- Gruppe
- A7V 250
- Ausgabe
- 06/2020

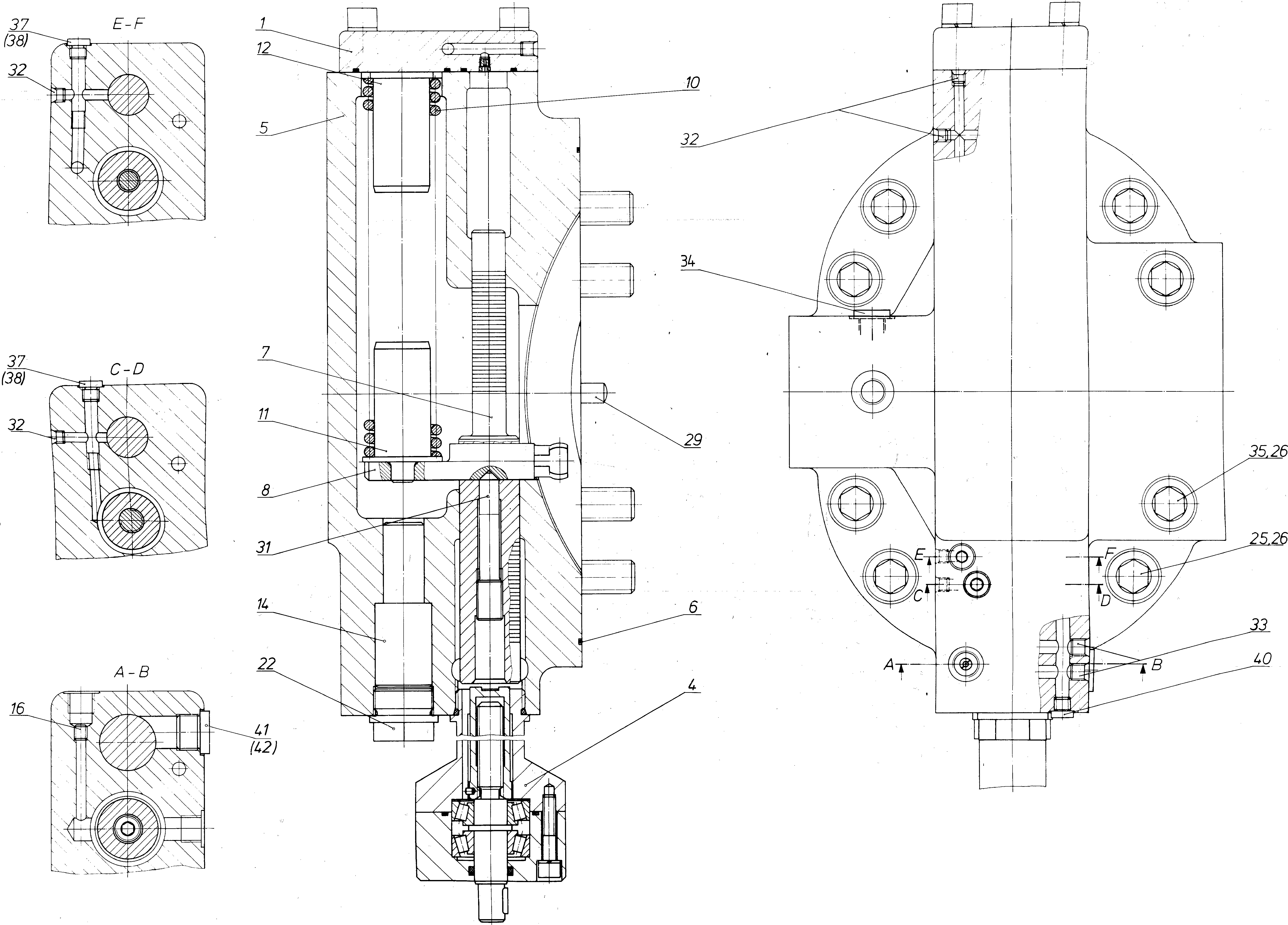

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910596396 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910812404 | STROKE LIMITER Stückliste der Baugruppe →L | 1 | ||
| R910804495 | COVER PLATE | 1 | ||
| R910945145 | O-RINGD | 1 | ||
| R910841846 | POSITIONING PISTON | 1 | ||
| R902413798 | POSITIONING STUD | 1 | ||
| R910591548 | COMPRESSION SPRING | 1 | ||
| R910801798 | SPRING BUSH | 1 | ||
| R910801828 | SPRING BUSH | 1 | ||
| R910595381 | PLUG | 1 | ||
| R910571261 | THROTTLE SCREW | 1 | ||
| R910595403 | SCREW PLUG | 1 | ||
| R910110043 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100838 | SPRING LOCK WASHER | 8 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910807001 | SETSCREW | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910120901 | SOCKET HEAD CAP SCREW | 2 | ||
| R909156649 | SCREW PLUGD | 2 | ||
| R909156650 | SCREW PLUGD | 1 | ||
| R909156654 | SCREW PLUGD | 1 |
