Einheit · BASE UNIT
BASE UNITR902561374
Grundeinheit Bosch Rexroth, Typschlüssel BASEUNIT, Materialnummer R902561374.
- Nummer
- R902561374
- Typschlüssel
- BASE UNIT
- Gruppe
- BASE UNIT
- Ausgabe
- 06/2020

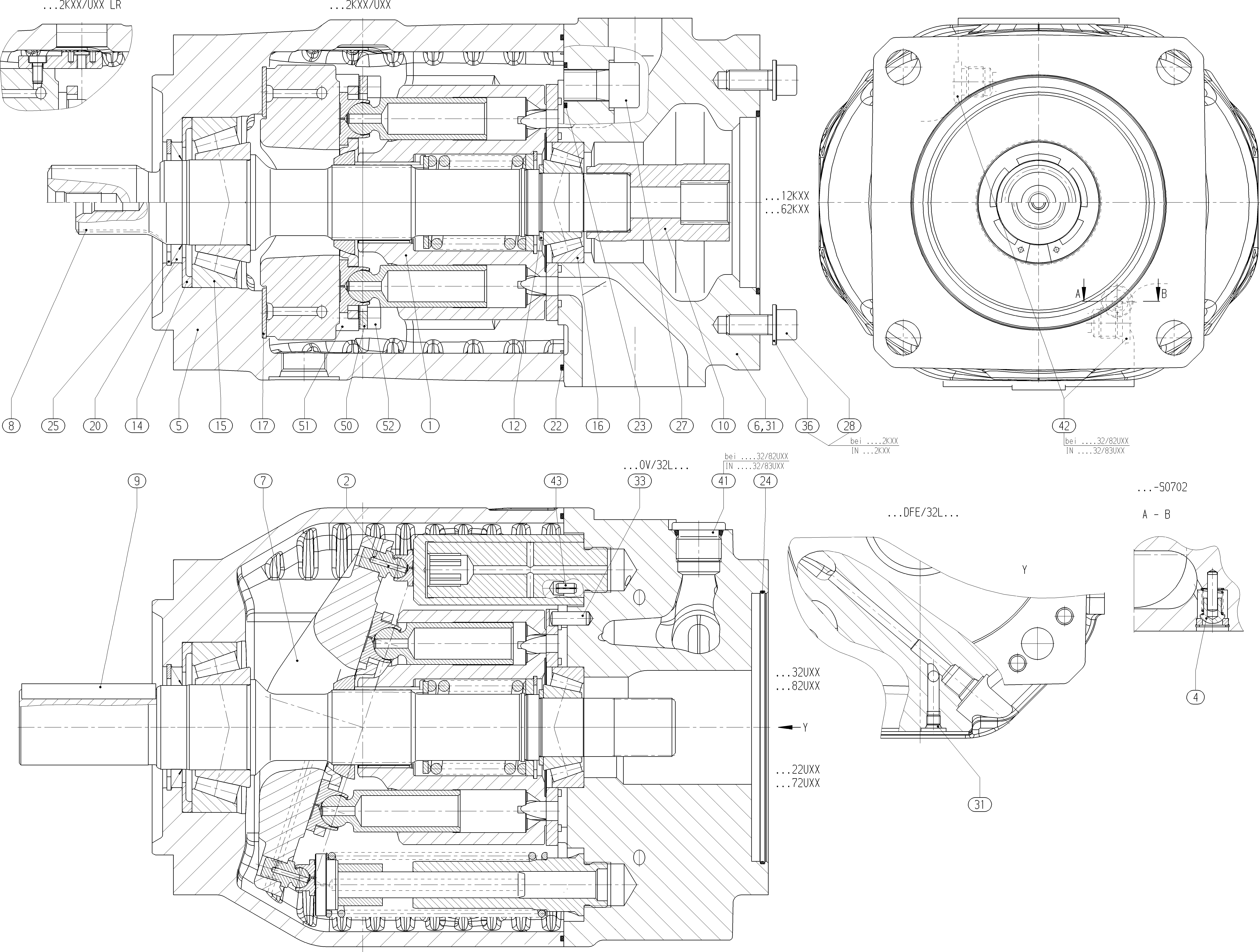

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902560504 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902561377 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R902560973 | PUMP HOUSING | 1 | ||
| R902551309 | CONNECTION PLATE | 1 | ||
| R902561376 | SWASH PLATE | 1 | ||
| R902561776 | DRIVE SHAFT | 1 | ||
| R902425273 | ADJUSTMENT SHIM | 1 | ||
| R902446966 | STOP RING | 1 | ||
| R910918203 | TAPERED-ROLLER BEARING | 1 | ||
| R902650949 | TAPERED-ROLLER BEARING | 1 | ||
| R902453958 | BEARING SHELL | 2 | ||
| 18 | R910993660 | COUNTERSUNK-HEAD SCREW | 2 | |
| R909831178 | SHAFT SEALING RINGD | 1 | ||
| R910930461 | O-RINGD | 1 | ||
| R913053032 | R-RINGD | 4 | ||
| R909156462 | O-RINGD | 1 | ||
| R910941920 | RETAINING RING | 1 | ||
| R910659169 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910922017 | STRAIGHT PIN | 1 | ||
| R902601712 | SCREW PLUG | 2 | ||
| R902601709 | SCREW PLUG | 2 | ||
| R900002645 | SLOTTED SPRING PIN | 1 | ||
| R902570110 | SEGMENT | 2 | ||
| R902493284 | SPACER SLEEVE | 4 | ||
| R902530617 | SOCKET HEAD CAP SCREW | 4 |
Weitere Ausführungen 23
- R902506707 BASE UNIT
- R902560618 BASE UNIT
- R902560627 BASE UNIT
- R902561013 BASE UNIT
- R902561032 BASE UNIT
- R902561033 BASE UNIT
- R902561036 BASE UNIT
- R902561299 BASE UNIT
- R902561314 BASE UNIT
- R902561355 BASE UNIT
- R902561392 BASE UNIT
- R902561414 BASE UNIT
- R902561421 BASE UNIT
- R902561624 BASE UNIT
- R902561659 BASE UNIT
- R902561679 BASE UNIT
- R902561700 BASE UNIT
- R902561709 BASE UNIT
- R902561731 BASE UNIT
- R902561780 BASE UNIT
- R902562005 BASE UNIT
- R902562006 BASE UNIT
- R902562032 BASE UNIT
