Einheit · BASE UNIT
BASE UNITR902561659
Grundeinheit Bosch Rexroth, Typschlüssel BASEUNIT, Materialnummer R902561659.
- Nummer
- R902561659
- Typschlüssel
- BASE UNIT
- Gruppe
- BASE UNIT
- Ausgabe
- 06/2020

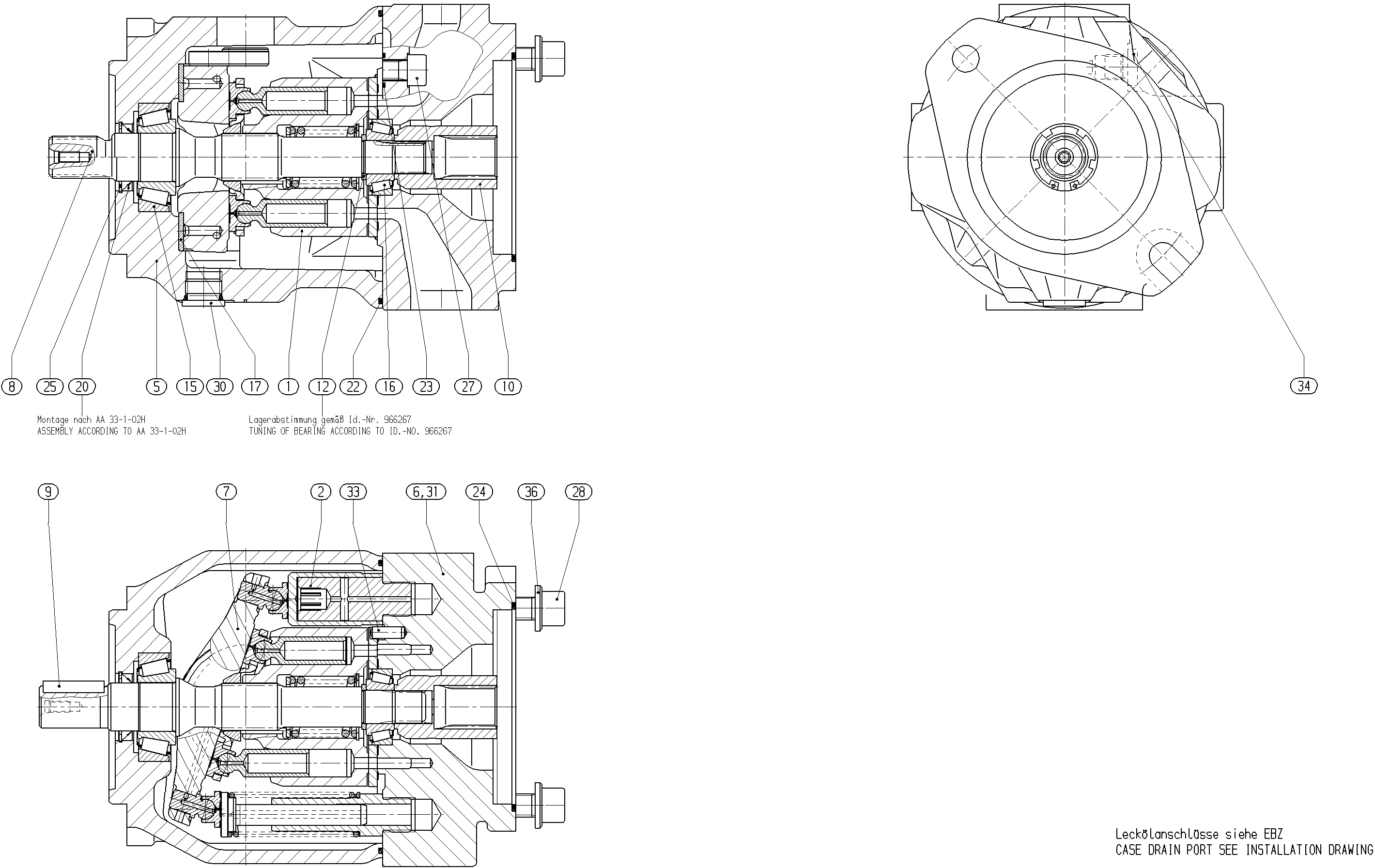

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902439596 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910911162 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R902564608 | PUMP HOUSING | 1 | ||
| R902444796 | CONNECTION PLATE | 1 | ||
| R902560982 | SWASH PLATE | 1 | ||
| R902417369 | DRIVE SHAFT | 1 | ||
| R902436098 | SPLINED COUPLING | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| R910794325 | SHAFT SEALING RINGD | 1 | ||
| R910976090 | O-RINGD | 1 | ||
| R913052104 | R-RINGD | 4 | ||
| R910640182 | O-RINGD | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R910901969 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
Weitere Ausführungen 23
- R902506707 BASE UNIT
- R902560618 BASE UNIT
- R902560627 BASE UNIT
- R902561013 BASE UNIT
- R902561032 BASE UNIT
- R902561033 BASE UNIT
- R902561036 BASE UNIT
- R902561299 BASE UNIT
- R902561314 BASE UNIT
- R902561355 BASE UNIT
- R902561374 BASE UNIT
- R902561392 BASE UNIT
- R902561414 BASE UNIT
- R902561421 BASE UNIT
- R902561624 BASE UNIT
- R902561679 BASE UNIT
- R902561700 BASE UNIT
- R902561709 BASE UNIT
- R902561731 BASE UNIT
- R902561780 BASE UNIT
- R902562005 BASE UNIT
- R902562006 BASE UNIT
- R902562032 BASE UNIT
