Einheit · BASE UNIT
BASE UNITR902561780
Grundeinheit Bosch Rexroth, Typschlüssel BASEUNIT, Materialnummer R902561780.
- Nummer
- R902561780
- Typschlüssel
- BASE UNIT
- Gruppe
- BASE UNIT
- Ausgabe
- 06/2020

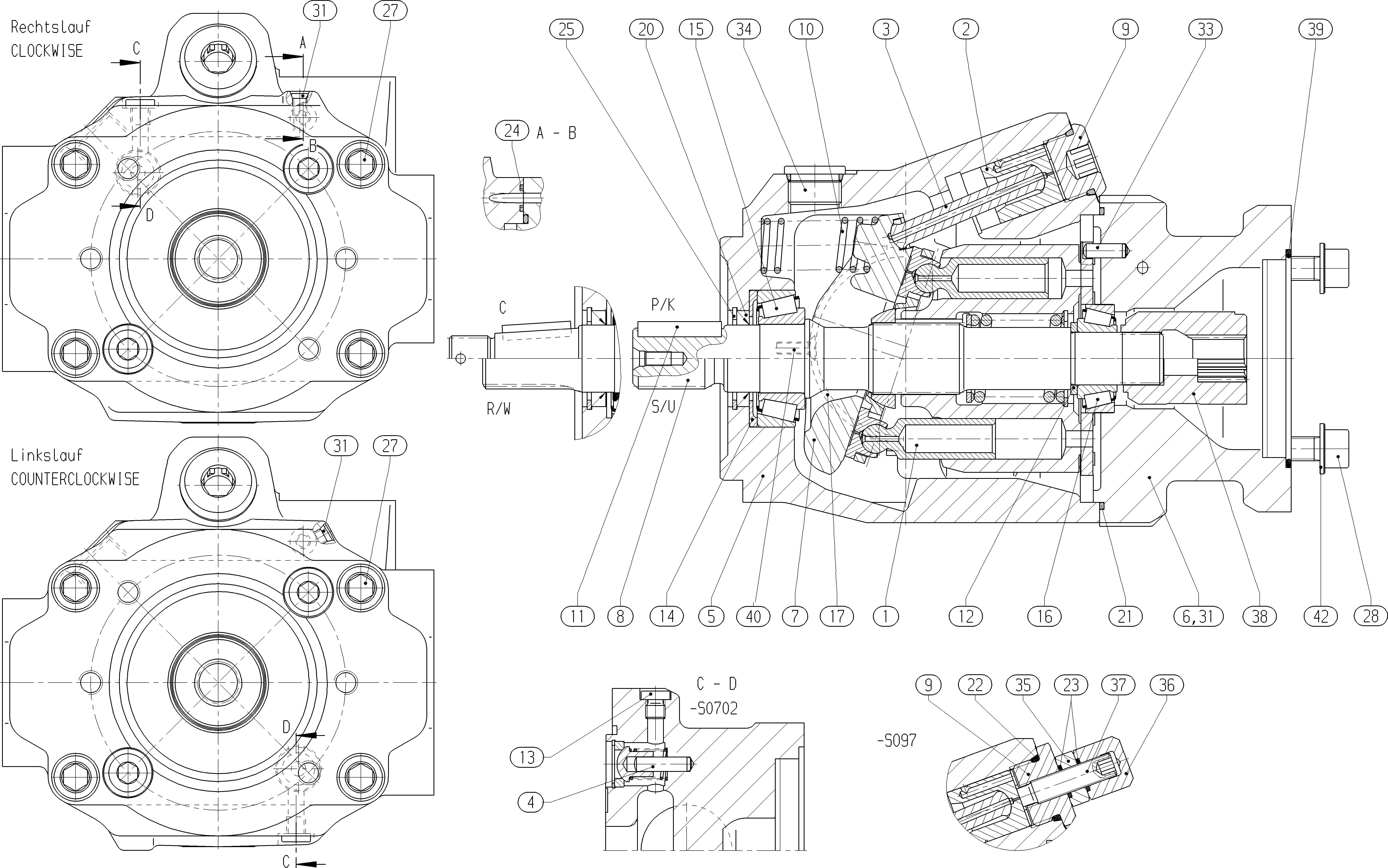

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902448764 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902456312 | PUMP HOUSING | 1 | ||
| R902504119 | CONNECTION PLATE | 1 | ||
| R902425069 | SWASH PLATE | 1 | ||
| R902417400 | DRIVE SHAFT | 1 | ||
| R902447576 | SCREW PLUG Stückliste der Baugruppe →L | 1 | ||
| R910928606 | COMPRESSION SPRING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910987963 | STOP RING | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R902445112 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RING | 1 | ||
| R913052048 | O-RING | 1 | ||
| R910942133 | R-RING | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910514195 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910967343 | SCREW PLUG | 3 | ||
| R910943529 | SPLINED COUPLING | 1 | ||
| R910357049 | O-RING | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 |
Weitere Ausführungen 23
- R902506707 BASE UNIT
- R902560618 BASE UNIT
- R902560627 BASE UNIT
- R902561013 BASE UNIT
- R902561032 BASE UNIT
- R902561033 BASE UNIT
- R902561036 BASE UNIT
- R902561299 BASE UNIT
- R902561314 BASE UNIT
- R902561355 BASE UNIT
- R902561374 BASE UNIT
- R902561392 BASE UNIT
- R902561414 BASE UNIT
- R902561421 BASE UNIT
- R902561624 BASE UNIT
- R902561659 BASE UNIT
- R902561679 BASE UNIT
- R902561700 BASE UNIT
- R902561709 BASE UNIT
- R902561731 BASE UNIT
- R902562005 BASE UNIT
- R902562006 BASE UNIT
- R902562032 BASE UNIT
